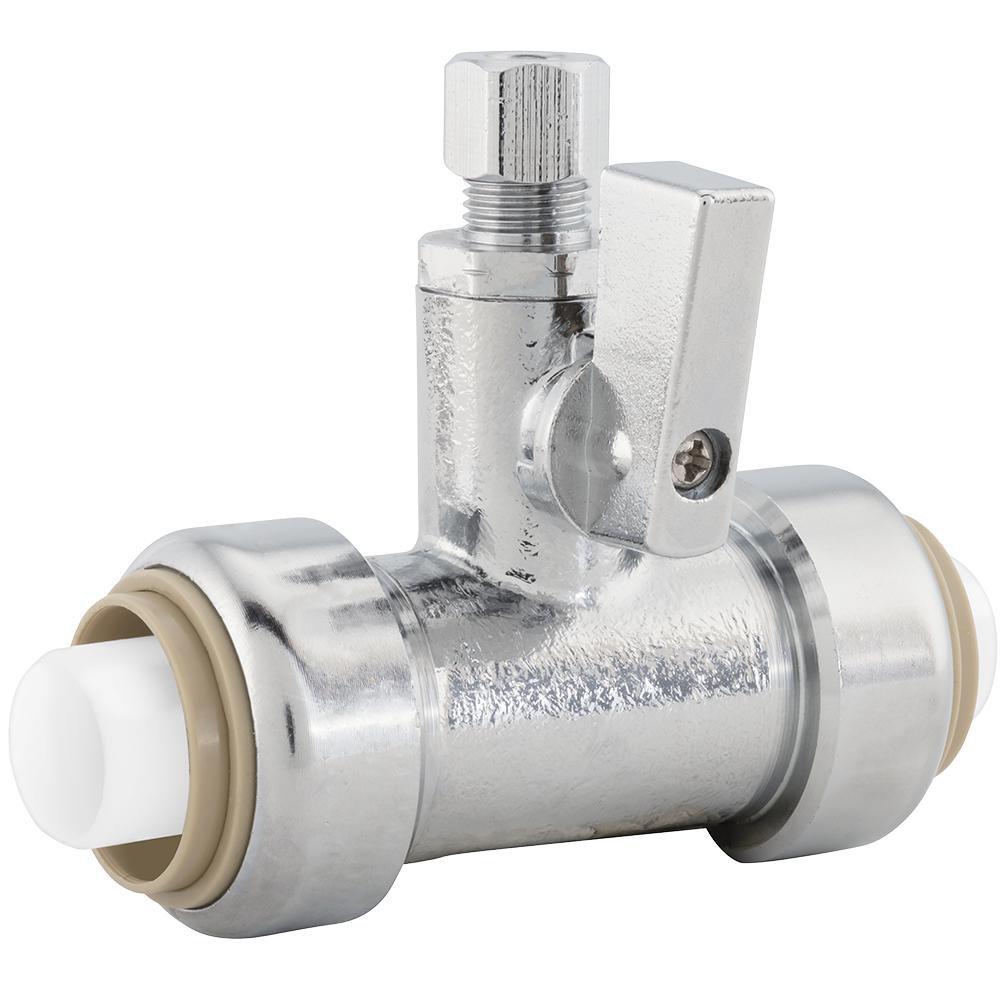

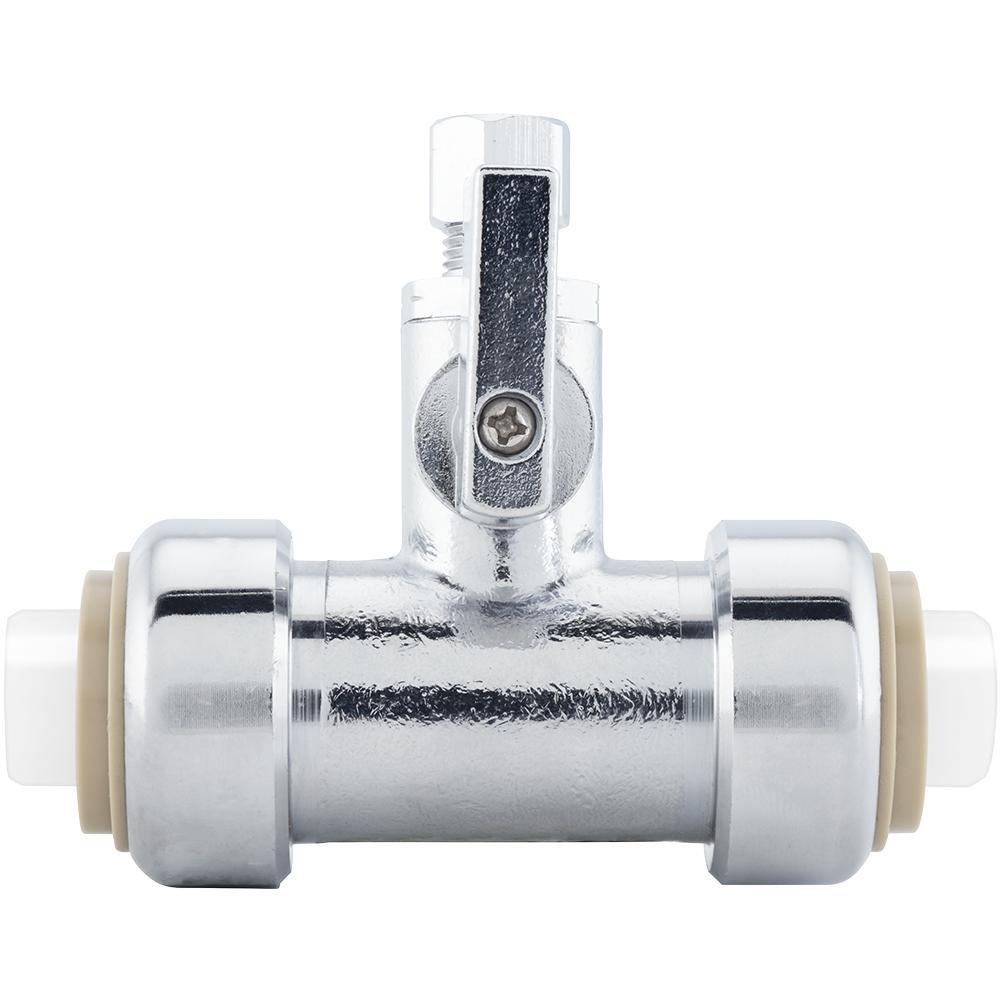

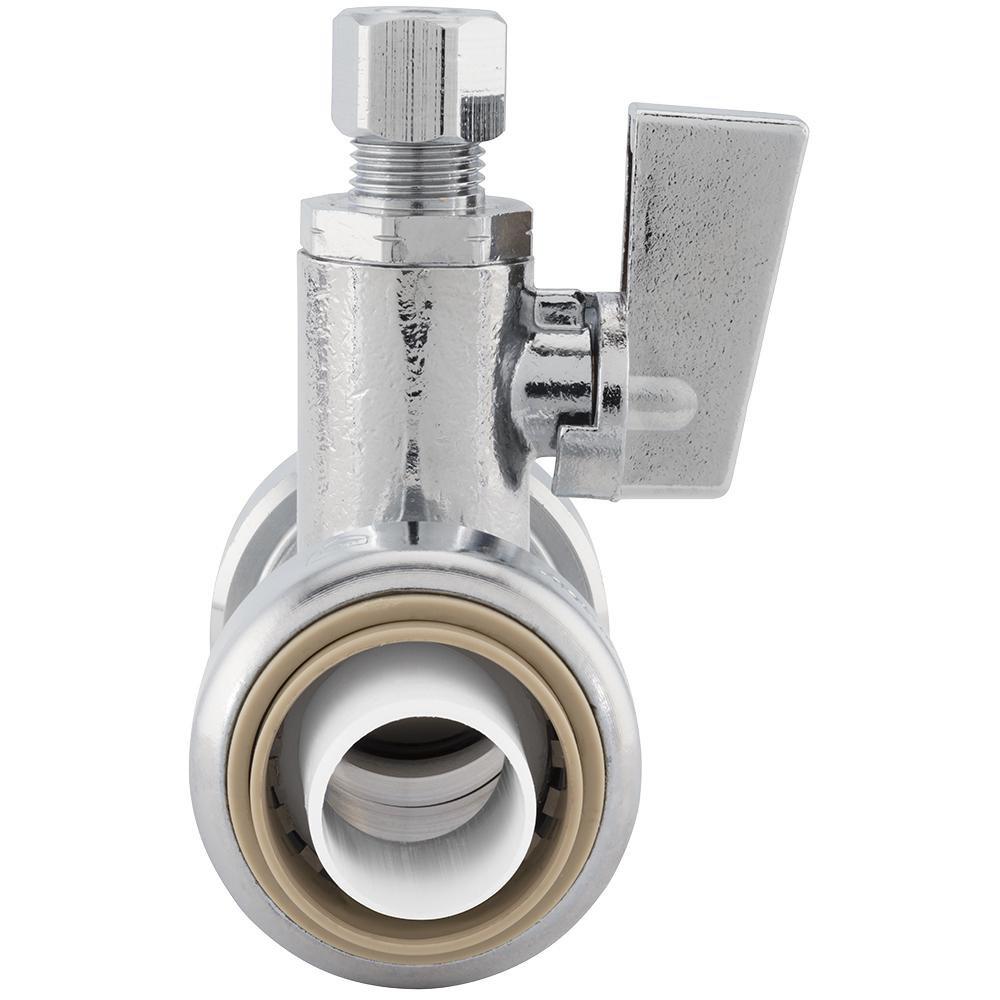

Jones Stephens C77445LF Plumbite 3/4 x 3/4 x 1/4 in. Push 200 psi Reducing Brass Compression Tee

Product Description

The Jones Stephens C77445LF Plumbite push fitting provides a reliable way to connect pipes without the need for soldering or special tools. This reducing brass compression tee has a size of three-quarters by three-quarters by one-quarter inches, designed to handle up to 200 psi pressure. The connection process is heat-free, ensuring a secure seal with easy installation.

• Utilizes stainless steel gripper ring and EPDM O-ring for secure connections
• Can connect copper, CPVC, PEX, or PE-RT tubing
• Lead-free construction complies with safety standards

Product Highlights

This compression tee is ideal for plumbing applications where easy installation is required without heating or tools. Maximum temperature tolerance is one hundred eighty degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Jones Stephens Corp
• Part Number: C77445LF

Technical Specifications

• Maximum Pressure: 200 psi
• Maximum Temperature: 180°F
• Lead Free: Yes
• Warranty: 2 years
• Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, UPC, cUPC by IAPMO
• Disassembly Tool: Sold separately
