Jones Stephens C77407LF Plumbite 1 x 3/4 in. Push On Reducing Coupling

Product Description

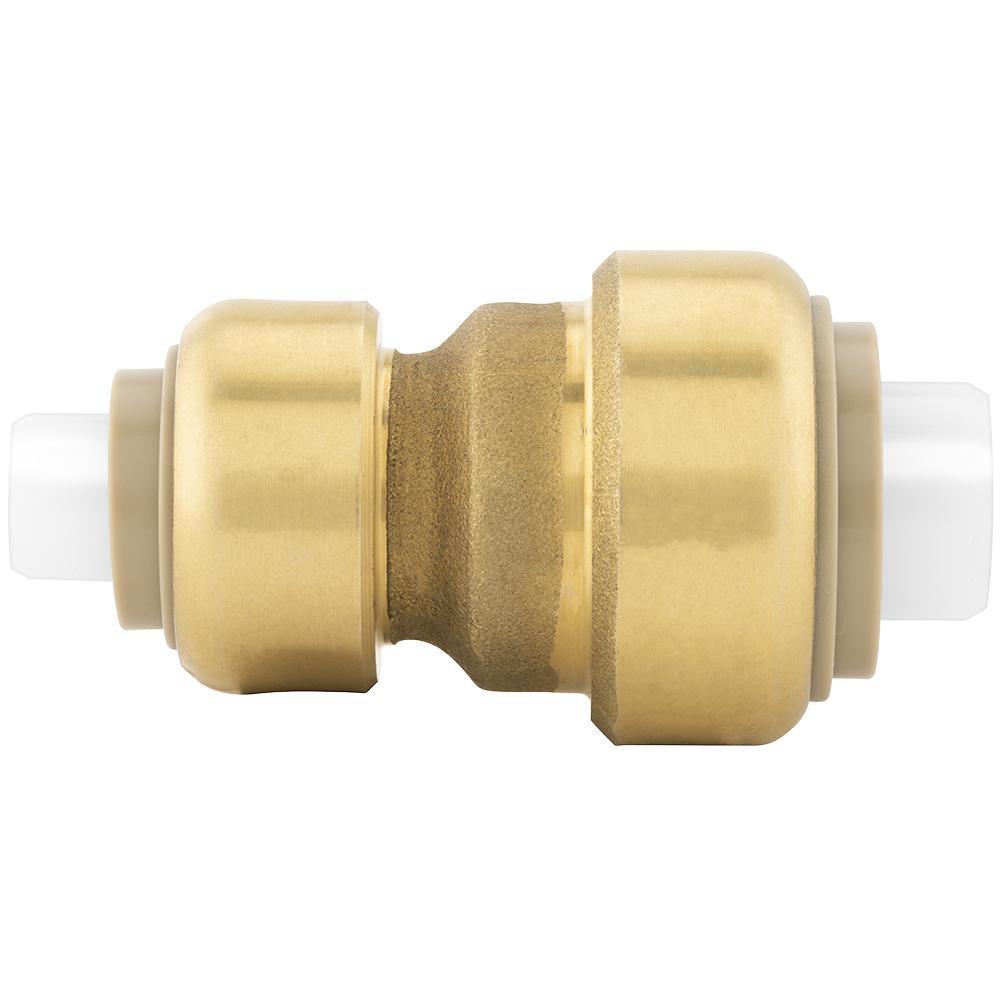

The Jones Stephens C77407LF is a Plumbite® 1 x 3/4 inch push-on reducing coupling designed to simplify pipe connections without the need for tools. This coupling is suitable for copper, CPVC, PEX, or PE-RT tubing. It's engineered for quick installation and reliable performance.

• No soldering or glue necessary for installation.

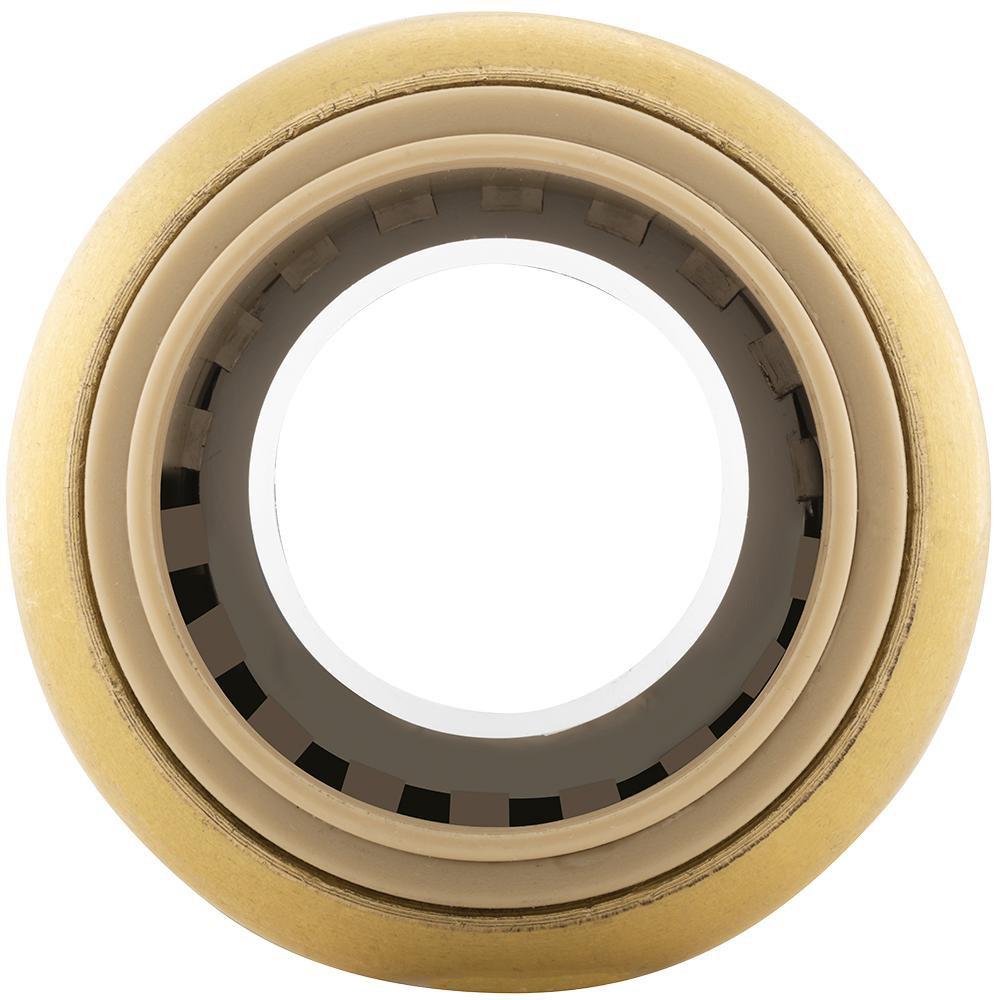

• Stainless steel gripper ring with EPDM O-ring for a secure seal.
• Maximum temperature rating of 180°F and pressure capacity up to 200 PSI.

Product Highlights

This product offers a heat-free method for joining various types of tubing, which can save time and reduce labor spent on installations.

Product Information

Standard Information

• Brand: Jones Stephens
• MPN: C77407LF

Technical Specifications

• Type: Reducing Coupling
• Size: 1 x 3/4 inch
• Material: Lead-free brass
• Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, NSF/ANSI 14, ASSE 1061, UPC, cUPC by IAPMO
• Warranty: 25 years
• Temperature Rating: Maximum 180°F
• Pressure Rating: Maximum 200 PSI
• Disassembly: Can be reused with a disassembly tool (sold separately)
