Jones Stephens c76920 3/4 in 300 Ft Red Pex-b Pipe Potable Water

Product Description

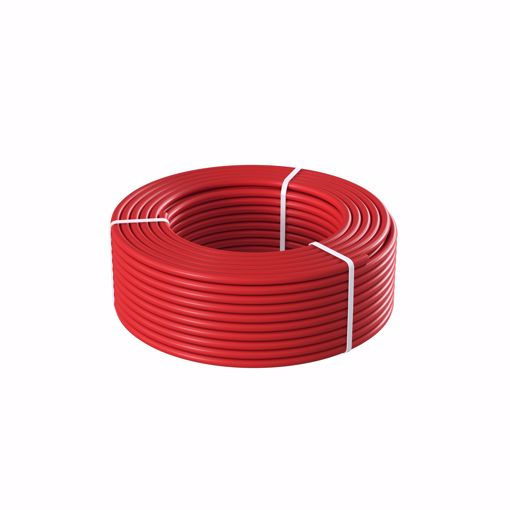

The JONES STEPHENS c76920 is a 3/4-inch red PEX-B pipe supplied in a 300-foot coil for potable water distribution systems. PEX-B is produced through the silane crosslinking method, yielding a flexible, high-density crosslinked polyethylene tube rated for both hot and cold water service. The red color convention signals hot-side runs, helping installers keep distribution layouts organized at a glance. This pipe is approved for use with ASTM F1807 insert fittings and ASTM F2159 insert fittings, giving plumbers a broad choice of connection systems. Licensed plumbers and plumbing contractors are the primary installers, though it also suits qualified mechanical contractors working on residential and light-commercial systems.

The c76920 is well suited for residential potable water distribution, radiant heating rough-ins, and retrofit work in both new construction and remodel scenarios. Its flexibility allows it to navigate framing cavities, concrete slabs, and crawl spaces without the rigid offsets required by copper or CPVC. It performs reliably in wet or dry installation environments and across warm and cold climate zones, making it a practical stocking item for plumbing contractors working in varied regions. The coil format reduces jobsite handling compared to straight-stick alternatives.

Key Features

• PEX-B silane-crosslinked high-density polyethylene construction resists corrosion and scale buildup
• Chlorine-resistant formulation extends service life in treated municipal water supplies
• Approved for use with ASTM F1807 and ASTM F2159 insert fittings
• NSF/ANSI 14, 61, and 372 certified for potable water safety and low lead content
• Meets ASTM F876, ASTM F877, and CSA B137.5 standards
• Red color coding supports organized hot-side and cold-side installation layouts
• 300-foot coil reduces joints and simplifies long runs

Compatibility

Approved for use with ASTM F1807 metal insert fittings and ASTM F2159 plastic insert fittings. Suitable for potable water plumbing applications meeting NSF/ANSI 14, 61, and 372 requirements and systems governed by ASTM F876 and F877 specifications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the main water supply and depressurize the system before making any connections. Use only fittings and crimp rings or clamp rings rated for the pipe outside diameter and compatible with PEX-B material. Avoid kinking the pipe during uncoiling; use a pipe uncoiling stand on larger runs to maintain minimum bend radius.

Technical Specifications

• Pipe Size: 3/4 inches
• Length: 300 feet
• Color: Red
• Material: Crosslinked High-Density Polyethylene (PEX-B)
• Fitting Compatibility: ASTM F1807, ASTM F2159
• Certifications: NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, ASTM F876, ASTM F877, CSA B137.5, PEX 5306
• Application: Potable Water

Standard Information

• Brand: JONES STEPHENS
• Manufacturer Part Number: c76920
