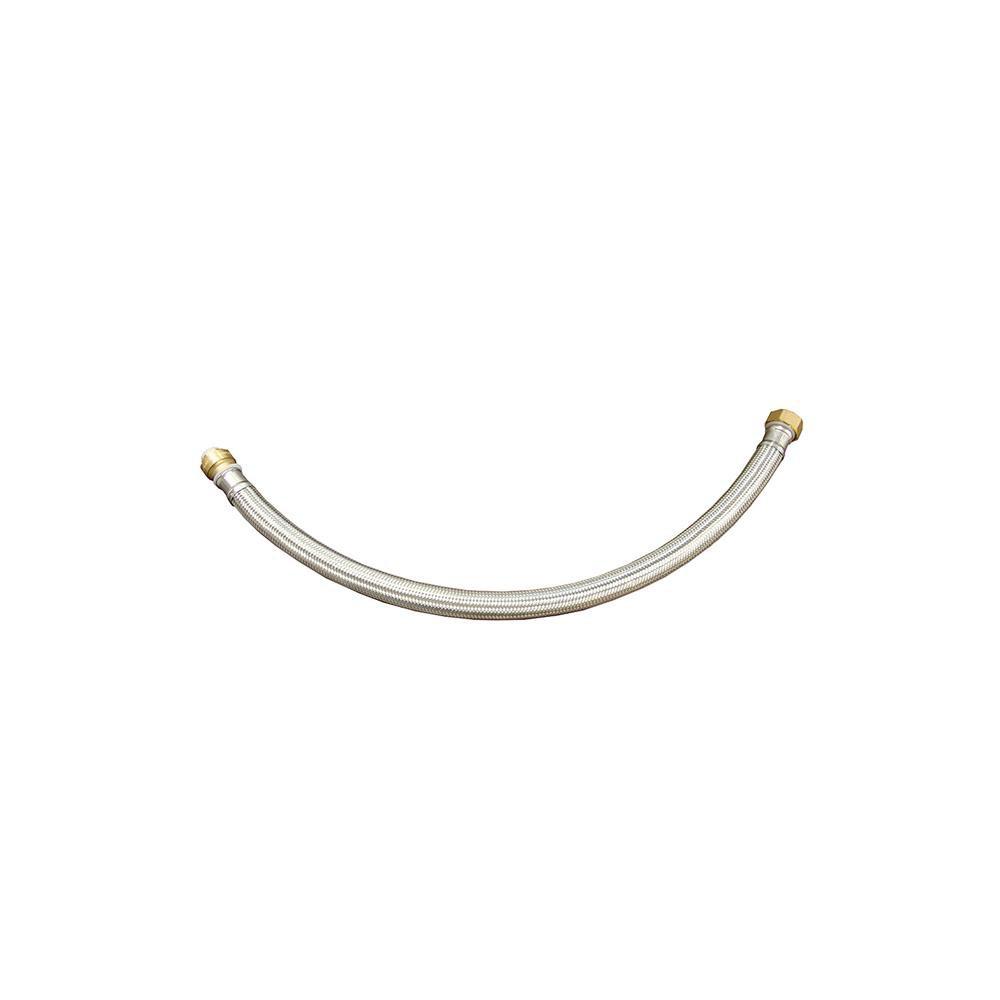

Jones Stephens C76612LF Plumbite 3/4 x 3/4 FIP x 12 in. Push On Water Heater Connector

Product Description

The Jones Stephens C76612LF is a push-on water heater connector designed for ease of installation. With a size of three-fourths by three-fourths inch and a length of twelve inches, it requires no soldering, glue, heat, or tools to join pipes. This connector is made for joining copper, CPVC, PEX, or PE-RT tubing securely.

• No soldering or tools needed for joint.
• Stainless steel gripper ring provides a strong seal.
• Can be reused with a disassembly tool (sold separately).

Product Highlights

This connector is simple to install and ideal for both residential and commercial water heater applications.

Product Information

Standard Information

• Brand: Jones Stephens
• MPN: C76612LF

Technical Specifications

• Material: Stainless steel and EPDM O-ring
• Maximum temperature: 180 degrees Fahrenheit
• Maximum pressure: 200 PSI
• Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASME A112.18.6/CSA B125.6, UPC, cUPC by IAPMO
• Warranty: 5 years
