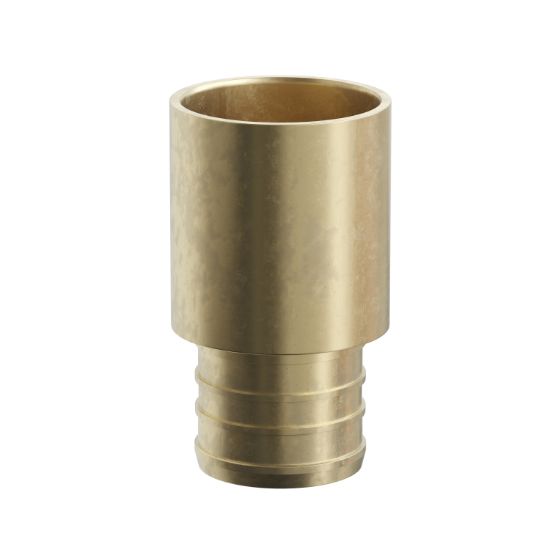

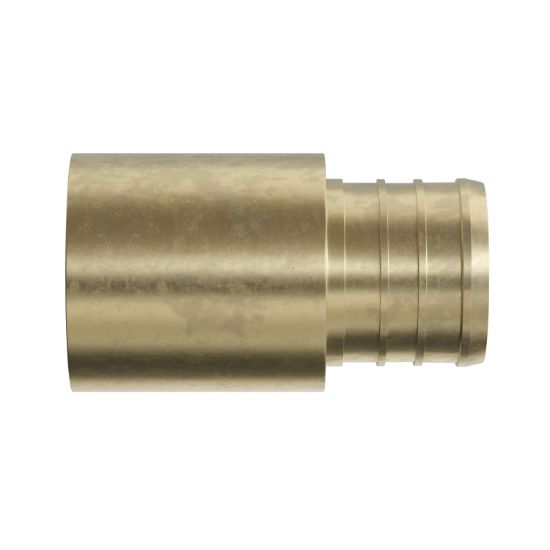

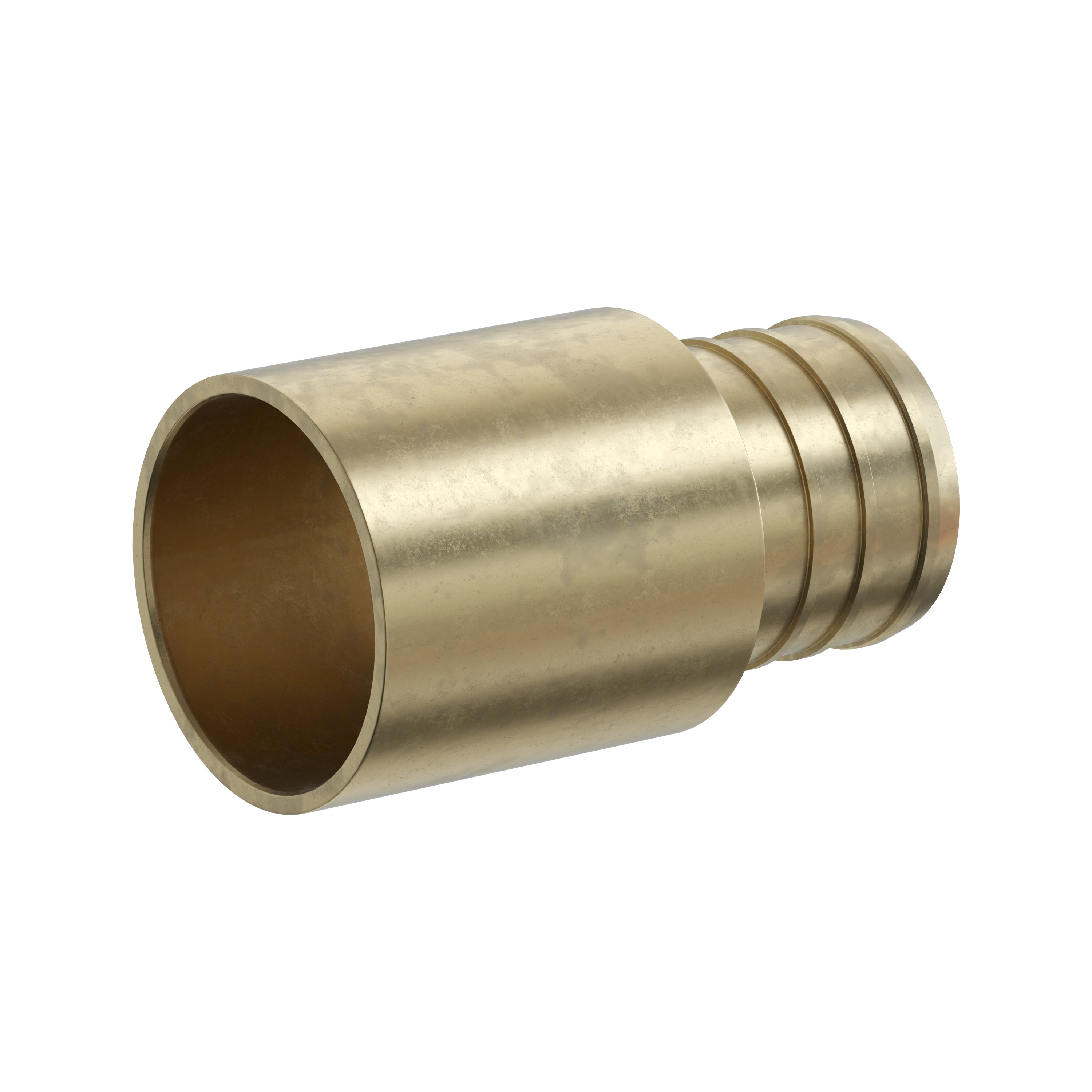

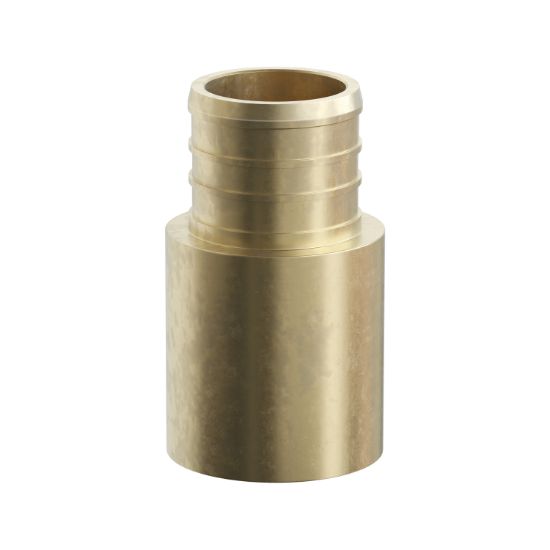

Jones Stephens C76050LF 3/4 in. x 3/4 in. PEX x Male Sweat Brass Adapter

Product Description

The Jones Stephens C76050LF is a lead-free 3/4 in. x 3/4 in. PEX x Male Sweat Brass Adapter designed for simple and dependable plumbing connections. It features easy installation and leak-proof connections. This adapter can be used with copper PEX crimp rings or stainless steel PEX clamps and is compliant with lead-free regulations.

• Simple and dependable plumbing connection
• Easy installation
• Leak-proof connections

Product Highlights

Lead-free brass adapter with PEX x Male Sweat end connections, suitable for water applications.

Product Information

Standard Information

• Brand: JONES STEPHENS
• Manufacturer Part Number: C76050LF
• Country of Origin: China

Technical Specifications

• MPN: C76050LF
• Brand: JONES STEPHENS
• Inventory SKU: C76050LF
• End Connection: PEX x Male Sweat
• End Connection 1: PEX Crimp
• End Connection 2: Male Sweat
• Fitting Size 1: 3/4 in.
• Fitting Size 2: 3/4 in.
• Fitting Sizes: 3/4 in. x 3/4 in.
• Lead Law Compliant: Yes
• Length: 1-9/25 in.
• Material: Brass
• Maximum Temperature: 210
• Pressure - Maximum: 100 psi
• Size: 3/4 in. x 3/4 in.
• Specifications - ANSI: ANSI 14-2016a;ANSI 61-2021;ANSI 372-2022
• Specifications - ASTM: ASTM F1807-2019b
• Specifications - CSA Certified: CSA B137.5-2017
• Specifications - FM Approved: No
• Specifications - IAPMO Listed: Yes
• Specifications - NSF: NSF 14-2016a;NSF 61-2021;NSF 372-2022
• Specifications - NSF Certified: Yes
• Specifications - UL Listed: No
• Application: Water
• Product Type: Brass Adapters
• Specifications - GSA Approved: No
• Clean & Bagged: No
• Tube Fitting Material: Brass
• Material Type: C46500
