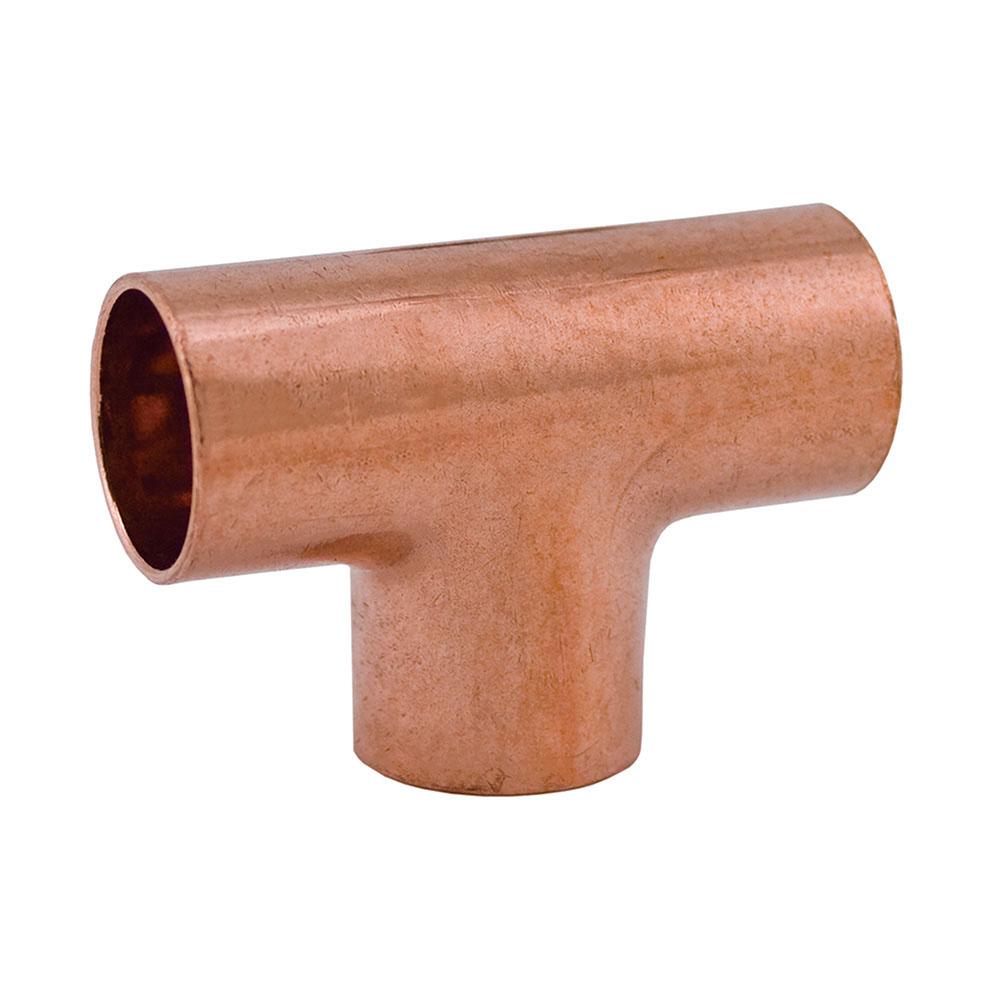

Jones Stephens c75285 Copper Solder Tee 3x2x2.5 Inch

Product Description

The JONES STEPHENS c75285 is a wrot copper solder joint tee designed for plumbing and HVAC piping systems requiring a reducing branch connection. Manufactured from wrot copper, this tee meets ACR (Air Conditioning and Refrigeration) quality standards, making it suitable for both plumbing and refrigerant piping applications. The fitting connects a 3-inch run to a 2.5-inch reducing outlet with a 2-inch branch, using standard solder joint ends throughout. Licensed plumbers and HVAC technicians install this type of fitting where a piping run must change diameter or branch off to a secondary line.

This tee is used in residential and light commercial plumbing systems, hydronic heating systems, and ACR piping installations where a reducing configuration is required. The three-socket solder joint design allows for a clean, leak-free brazed or soldered connection. Typical applications include main supply trunk reductions, drain and vent branch connections, and refrigerant line assemblies where pipe sizing transitions at a tee junction.

Key Features

• Wrot copper construction meets ACR quality standards for plumbing and refrigerant piping
• Three solder joint ends for strong, leak-free brazed or soldered connections
• Reducing configuration: 3 inch run x 2 inch branch x 2.5 inch outlet
• Compatible with standard copper tubing and fittings using common solder or brazing alloys
• Weighs 4.36 pounds — suitable for in-wall and overhead piping installations

Compatibility

Designed as an OEM-style replacement and standard fitting for wrot copper solder joint piping systems in residential and commercial plumbing or ACR applications.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician in accordance with applicable local plumbing codes and IFGC or IPC standards. Shut off the water supply or recover refrigerant from the system before cutting into any existing piping. Clean and flux all mating surfaces before soldering or brazing, and follow applicable codes regarding solder or brazing alloy selection for potable water systems. Allow joints to cool fully before restoring system pressure.

Technical Specifications

• Material: Wrot Copper
• Connection Type: Solder Joint
• Run Size: 3 inches
• Branch Size: 2 inches
• Outlet Size: 2.5 inches
• Weight: 4.36 pounds
• Application Standard: ACR (Air Conditioning and Refrigeration)

Standard Information

• Brand: JONES STEPHENS
• Manufacturer Part Number: c75285
