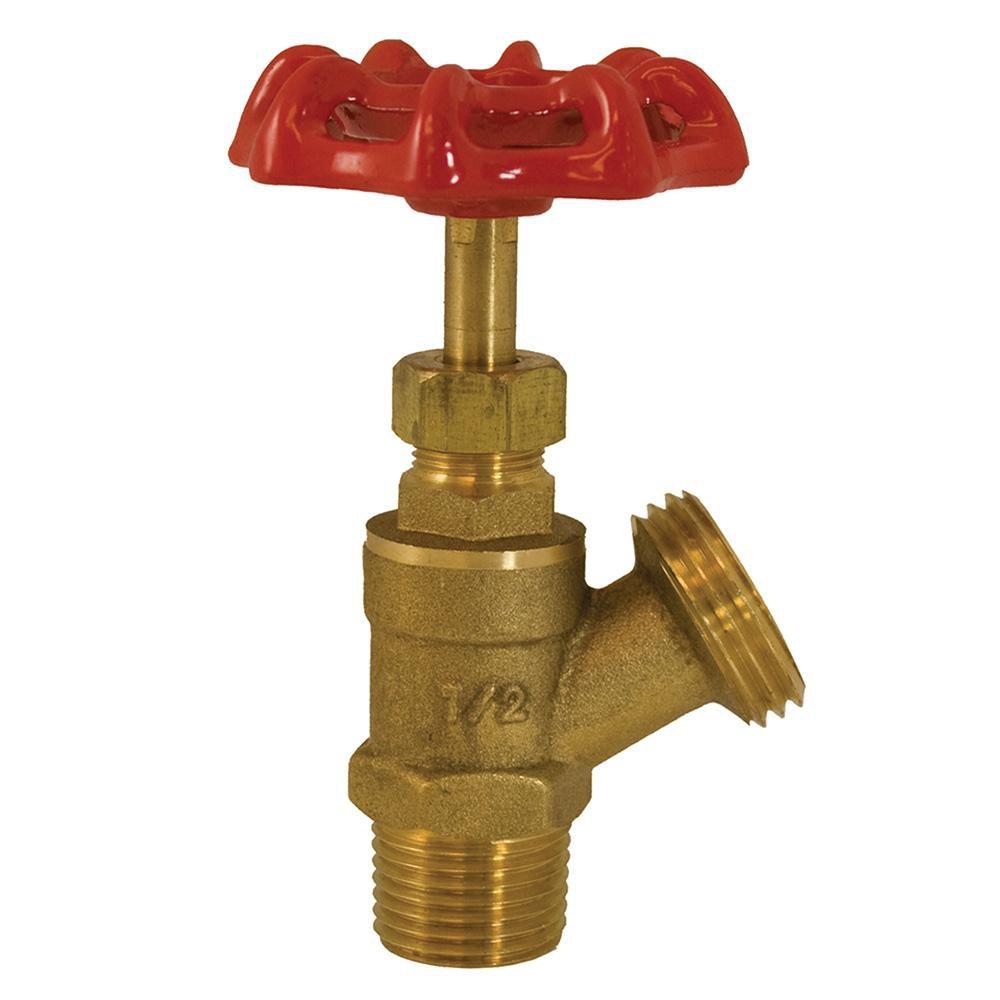

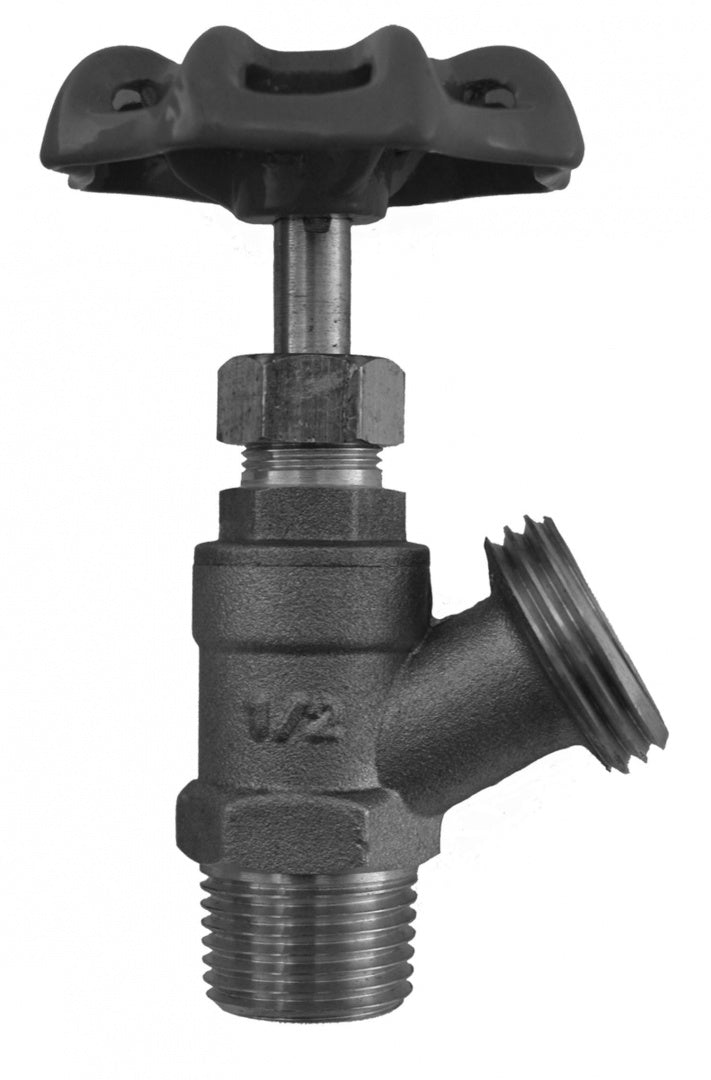

Jones Stephens B67320 1/2 x 3/4 in. MPT x MGHT Boiler Drain Valve

Product Description

The Jones Stephens B67320 is a boiler drain valve designed for efficient distribution in plumbing systems. This valve features a one-half inch Male Iron Pipe (MIP) inlet and three-fourth inch Male Garden Hose Thread (MGHT) outlet. It allows for easy connection to hoses and systems requiring drainage.

• Manufactured with a forged brass body for durability
• Handles temperatures ranging from 40°F to 160°F
• Seat material made from NBR for reliable sealing

Product Highlights

This boiler drain valve is suitable for high-pressure water systems and meets ASME A112.18.1 standards.

Product Information

Standard Information

• Brand: Jones Stephens
• Part Number: B67320

Technical Specifications

• Inlet Size: 1/2 in. MIP
• Outlet Size: 3/4 in. MGHT
• Maximum Pressure: 125 PSI WOG
• Maximum Temperature: 180°F
• Body Material: Cast brass
• Handle Material: Aluminum alloy
• Working Temperature Range: 40°F to 160°F
• Sealing Material: NBR
