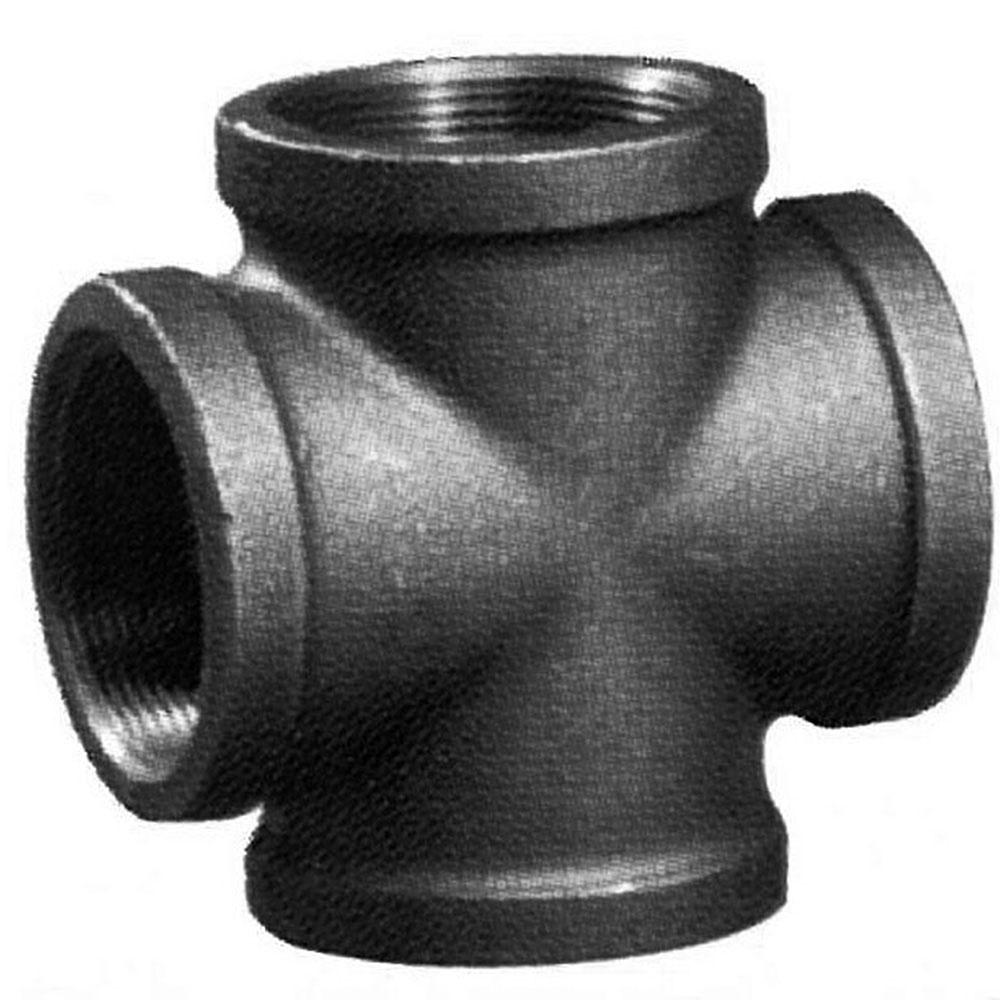

Jones Stephens b1950390 Black Iron Cross 2 Inches

Product Description

The JONES STEPHENS b1950390 is a 2-inch black iron cross fitting designed for threaded pipe systems in residential and commercial plumbing, gas distribution, and mechanical piping applications. This banded cross connects four pipe runs at a single junction point, allowing for branch distribution in both supply and return configurations. The black iron construction provides durability in dry or gas-service environments. Licensed plumbers and pipefitters are the primary installers of this type of fitting.

This fitting is suited for use in interior gas piping systems, black iron water and steam supply lines, and industrial process piping where a four-way junction is required. The banded design reinforces the body of the fitting for added structural integrity at the connection point. It is commonly used in residential and light commercial gas distribution systems as well as hydronic heating piping layouts.

Key Features

• Four-way cross configuration for branch piping distribution
• 2-inch nominal pipe size fits standard threaded black iron pipe
• Banded body design for additional fitting strength
• Black iron material suitable for gas and dry-service piping
• Threaded connections compatible with standard NPT pipe threads

Compatibility

Designed as an OEM-style replacement and standard cross fitting for 2-inch threaded black iron pipe systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Fuel Gas Code (IFGC) for gas-service applications. Shut off and depressurize the pipe system fully before removing or installing any fitting. Apply an approved thread sealant or PTFE tape rated for the intended service to all male threads before assembly. Do not use this fitting in wet or potable water service unless confirmed suitable for that application by local code and the authority having jurisdiction.

Technical Specifications

• Pipe Size: 2 inches
• Fitting Type: Cross
• Material: Black Iron
• Body Style: Banded
• Connection Type: Threaded (NPT)

Standard Information

• Brand: JONES STEPHENS
• Manufacturer Part Number: b1950390
