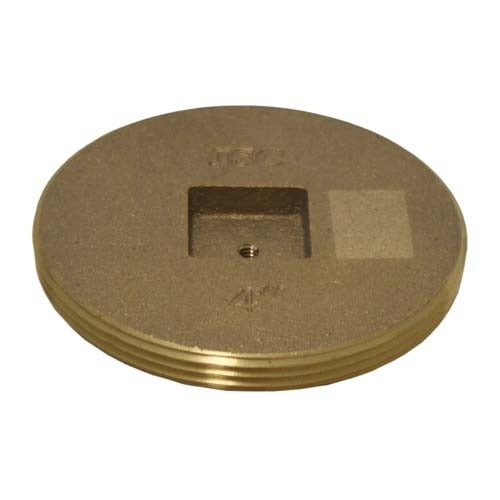

Jones Stephens 1684C Brass Countersunk Cleanout Plug

Product Description

The JONES STEPHENS 1684C is a brass countersunk cleanout plug designed for use with 4-inch cleanout access covers. The plug features a countersunk profile and a 1/4-20 tapped hole, allowing it to be seated flush with the cover face and secured with a standard flat-head machine screw. Constructed from solid brass, it provides corrosion resistance in drain, waste, and vent applications. Licensed plumbers and drain service technicians install this plug as part of a cleanout assembly in residential and light commercial piping systems.

This plug is used in plumbing drain, waste, and vent systems where a flush, recessed plug is required on a 4-inch cleanout access cover. The countersunk design keeps the plug face flush with the surrounding surface, which is practical in finished floor or wall installations. The 1/4-20 tapped center hole accepts a standard machine screw for secure retention and easy removal during drain cleaning or inspection service calls.

Key Features

• Countersunk profile seats flush with the access cover face for finished installations
• 1/4-20 tapped center hole for standard machine screw fastening and easy removal
• Solid brass construction provides corrosion resistance in wet drain environments
• Sized for 4-inch cleanout access cover applications
• Lightweight at 0.15 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement or service component for 4-inch brass cleanout access cover assemblies in residential and light commercial drain, waste, and vent piping systems.

Installation Notes

Installation is performed by a licensed plumber. Shut off flow and ensure the drain line is clear before accessing the cleanout. Use a properly sized flat-head machine screw threaded into the 1/4-20 tapped hole to seat and secure the plug. Follow local plumbing codes and IPC guidelines for cleanout accessibility and cover requirements.

Technical Specifications

• Material: Brass
• Plug Type: Countersunk, Tapped
• Thread Size: 1/4-20
• Application Size: 4 inches
• Weight: 0.15 pounds
• UPC: 717510544404

Standard Information

• Brand: JONES STEPHENS
• Manufacturer Part Number: 1684C
