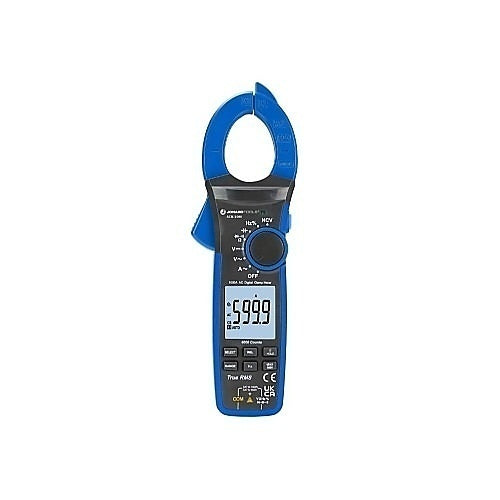

Jonard Tools ACM-1000 Digital Clamp Meter

Product Description

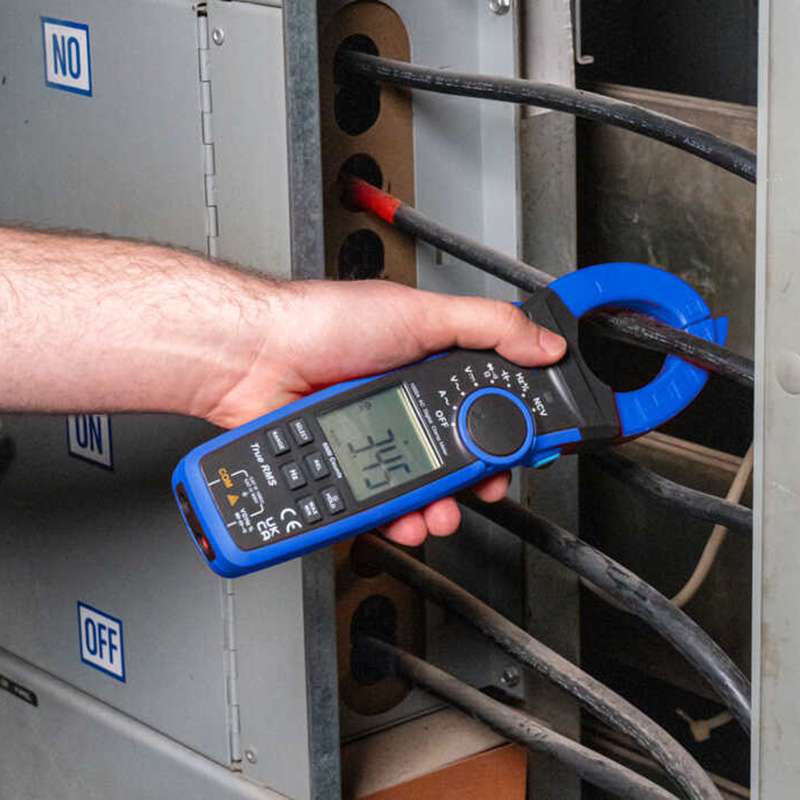

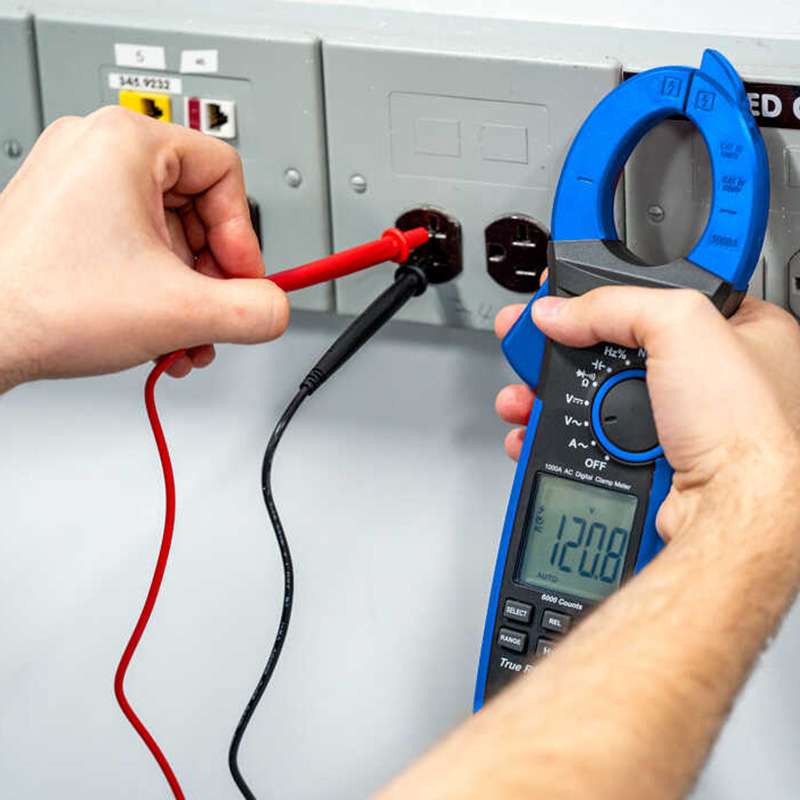

The Jonard Tools ACM-1000 is a digital clamp meter designed for accurate electrical measurements. It utilizes automatically ranging true root mean squared (TRMS) technology to provide reliable readings. Ideal for maintenance professionals, this meter is equipped to test various electrical properties.

• Tests AC/DC voltage, resistance, continuity, frequency, and capacitance
• Safety ratings include CAT IV 600V and CAT III 1000V
• Clamp opening of 45 mm allows for versatility

Product Highlights

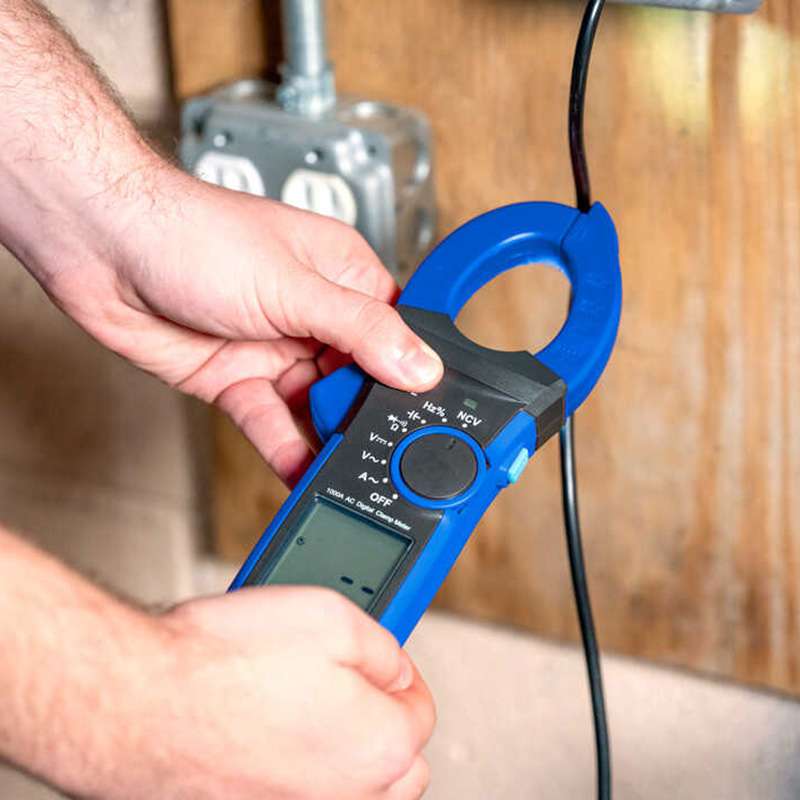

This digital clamp meter features a robust design with a non-contact voltage tester integrated into the clamp. It is user-friendly and comes with three AAA batteries for immediate operation.

Product Information

Standard Information

• Brand: Jonard Tools
• Manufacturer: Jonard Industries Corporation

Technical Specifications

• Maximum AC Current Measurement: 1000A
• Maximum Resistance Measurement: 0.04 ohms
• Maximum Capacitance Measurement: 40 mF
• Maximum Temperature Measurement: 1000 degrees C
• Jaw Capacity: 45 mm
• Battery Type: AAA x 3
• Dimensions: 12.25 in x 5.55 in x 2.48 in
• Weight: 1.7 lbs
