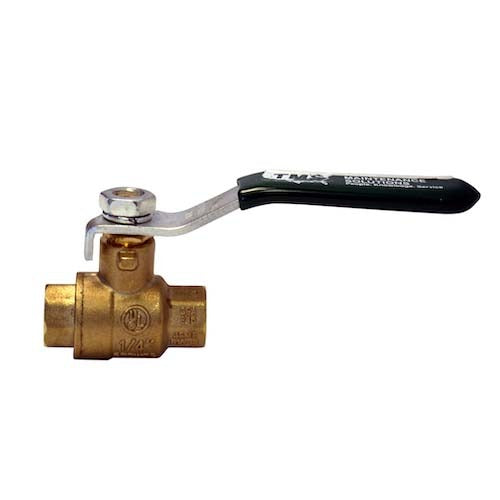

Jomar Valve SA0259101 Tms Ball Valve 1/4 Inch Fip

Product Description

The JOMAR VALVE SA0259101 TMS / 20 CTN. is a 1/4-inch female iron pipe (FIP) threaded ball valve designed for use in plumbing, HVAC, and mechanical systems where reliable flow shutoff is required. Ball valves of this type use a rotating ball mechanism to provide full-bore on/off flow control with minimal pressure drop across the valve. The FIP threaded connection allows for direct installation into standard female-threaded pipe fittings. Licensed plumbers and HVAC technicians are the primary installers for this type of valve in both new construction and service applications.

This ball valve is suited for residential and light commercial plumbing and HVAC piping systems. The 1/4-inch FIP thread size makes it appropriate for smaller branch lines, equipment isolation, test port connections, and instrument line shutoffs. It is typically installed where a compact, manually operated shutoff is needed in a threaded piping assembly.

Key Features

• 1/4-inch female iron pipe (FIP) threaded connection for standard threaded piping systems
• Ball valve design provides positive shutoff with a quarter-turn operation
• Compact form factor suited for tight installation spaces in mechanical systems
• Sold in a case quantity of 20 units, suitable for stocking or multi-unit jobs

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for standard 1/4-inch FIP threaded piping applications in residential and commercial plumbing and HVAC systems.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local plumbing codes and IFGC or IPC guidelines where relevant. Shut off the water or fluid supply and relieve system pressure completely before removing or installing any valve. Use appropriate thread sealant or PTFE tape on all threaded connections and tighten to fitting manufacturer specifications using proper pipe wrenches. Do not over-torque the FIP threads, as this can crack fittings or damage the valve body.

Technical Specifications

• Connection Type: 1/4-inch Female Iron Pipe (FIP) Thread
• Valve Type: Ball Valve
• Case Quantity: 20 units per carton

Standard Information

• Brand: JOMAR VALVE
• Manufacturer Part Number: SA0259101 TMS / 20 CTN.
