Jomar Valve jomar-810-524g 3-way Ball Valve 3/4 in Press Brass

Product Description

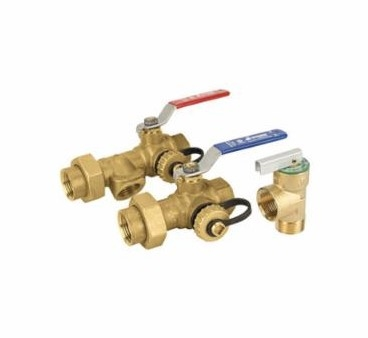

The JOMAR VALVE jomar-810-524g is a 3-way hot ball valve kit designed for tankless water heater installations using press-fit connections. Built with a brass body and standard port configuration, it is rated at 600 WOG (Water, Oil, Gas), making it well suited for residential and light commercial plumbing systems. The 3/4-inch press connection eliminates threaded fittings at the valve, reducing installation time on copper piping. Licensed plumbers and plumbing contractors are the primary installers for this type of valve kit.

This valve kit is intended for use on tankless water heater supply and service lines where 3-way flow control is required. The press-fit end connections are compatible with standard 3/4-inch copper tubing. The 3-way configuration allows the installer to direct or divert flow, which is common in tankless heater isolation and bypass setups. The kit format typically includes all components needed for a complete valve installation at the water heater connections.

Key Features

• 3-way ball valve design for flow diversion or isolation at tankless water heater connections
• 600 WOG pressure rating for reliable performance in potable water systems
• 3/4-inch press-fit connections for tool-based joining to copper tubing without threading
• Brass body construction for corrosion resistance in hot water applications
• Standard port configuration for consistent, unrestricted flow through the valve

Compatibility

Designed as an OEM-style replacement or new-installation valve kit for 3/4-inch press copper piping systems on residential and light commercial tankless water heater installations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before installing or servicing the valve. Press-fit connections require a calibrated press tool with the correct jaw size for 3/4-inch fittings. Verify valve orientation and flow direction before completing the press connections, as repositioning after pressing is not possible.

Technical Specifications

• Connection Size: 3/4 inches
• Connection Type: Press
• Body Material: Brass
• Port Configuration: Standard Port
• Valve Type: 3-Way Ball Valve
• Pressure Rating: 600 WOG
• Application: Tankless Water Heater Valve Kit

Standard Information

• Brand: JOMAR VALVE
• Manufacturer Part Number: jomar-810-524g
