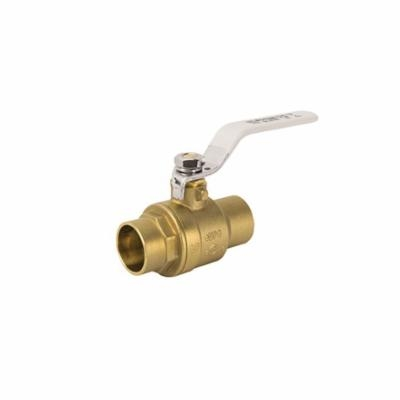

Jomar Valve jomar-150-114g Ball Valve 0.75 in Solder 600 Wog

Product Description

The JOMAR VALVE jomar-150-114g is a 3/4-inch full port brass ball valve designed for use in plumbing and fluid control systems. Built as a two-piece body design with a solder end connection, this valve delivers a 600 WOG (Water, Oil, Gas) pressure rating in a lead-free brass construction. The full port design minimizes flow restriction, making it a reliable choice where unrestricted flow is required. Licensed plumbers and HVAC technicians install this type of valve in residential and light commercial piping systems for shutoff and isolation service.

This valve is suited for copper pipe installations using standard sweat-solder connections in potable water, hydronic heating, and general fluid service applications. The full port bore allows for maximum flow capacity through the line. Its lead-free brass construction meets regulatory requirements for use in potable water systems. This is a common valve choice for plumbers working on domestic water supply lines, radiant heating systems, and building service piping.

Key Features

• Full port design for unrestricted flow through the valve body
• 600 WOG pressure rating for water, oil, and gas service
• Lead-free brass construction meets potable water compliance requirements
• Two-piece body design for ease of installation and service
• Solder end connection compatible with standard copper tubing

Compatibility

Designed as an OEM-style replacement or new-installation valve for 3/4-inch copper pipe systems using sweat-solder connections in residential and light commercial plumbing applications.

Installation Notes

Installation is performed by a licensed plumber following applicable IPC and local plumbing codes. Shut off the water supply and depressurize the line before soldering. Use proper flux and lead-free solder when making sweat connections, and allow the valve body to cool completely before pressurizing the system. Do not apply excessive heat directly to the valve body or ball seat during soldering.

Technical Specifications

• Connection Type: Solder (Sweat)
• Port Type: Full Port
• Body Material: Lead-Free Brass
• Body Style: Two-Piece
• Pressure Rating: 600 WOG
• Pipe Size: 0.75 inches

Standard Information

• Brand: JOMAR VALVE
• Manufacturer Part Number: jomar-150-114g
