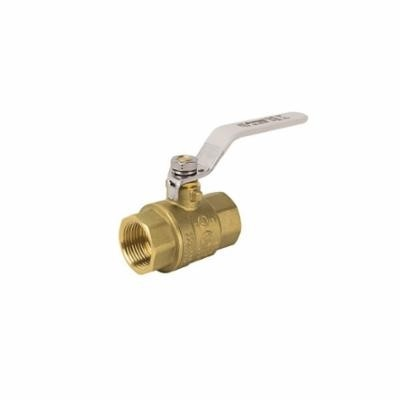

Jomar Valve jomar-150-104g 3/4 Inch Full Port Ball Valve

Product Description

The JOMAR VALVE jomar-150-104g is a 3/4 inch full port, two-piece brass ball valve rated at 600 WOG (Water, Oil, Gas). Built from lead free brass, it uses a threaded NPT connection and delivers full port flow, meaning the valve bore matches the pipe inside diameter to minimize pressure drop. This valve is suited for plumbing, hydronic, and general piping systems where a reliable shutoff is required. Licensed plumbers and pipefitters install this type of valve in both new construction and retrofit applications.

This valve fits residential and light commercial piping systems where 3/4 inch NPT threaded connections are specified. Its 600 WOG pressure rating makes it appropriate for water service, oil, and gas lines within that pressure range. The two-piece body design allows the valve to be serviced or resealed without removal from the line in many installations. It is a common choice for shutoff service at water heaters, boilers, manifolds, and branch supply lines.

Key Features

• Full port ball design minimizes flow restriction and pressure drop
• Lead free brass construction meets applicable drinking water regulations
• 600 WOG pressure rating suitable for water, oil, and gas service
• 3/4 inch NPT threaded ends for standard pipe connections
• Two-piece body construction for field serviceability

Compatibility

Designed as an OEM-style replacement or new-installation shutoff valve for 3/4 inch NPT threaded piping systems in plumbing, hydronic heating, and gas distribution applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with local plumbing codes and the IPC or IFGC as applicable. Shut off and depressurize the supply line completely before cutting into any existing piping. Apply thread sealant or PTFE tape to male NPT threads per standard practice, and do not over-torque the connections into the valve body. Confirm the valve handle orientation matches the intended open and closed positions before returning the system to service.

Technical Specifications

• Connection Type: Threaded NPT
• Port Type: Full Port
• Body Style: 2 Piece
• Pressure Rating: 600 WOG
• Pipe Size: 3/4 inch
• Material: Lead Free Brass
• UNSPSC Code: 40141607

Standard Information

• Brand: JOMAR VALVE
• Manufacturer Part Number: jomar-150-104g
