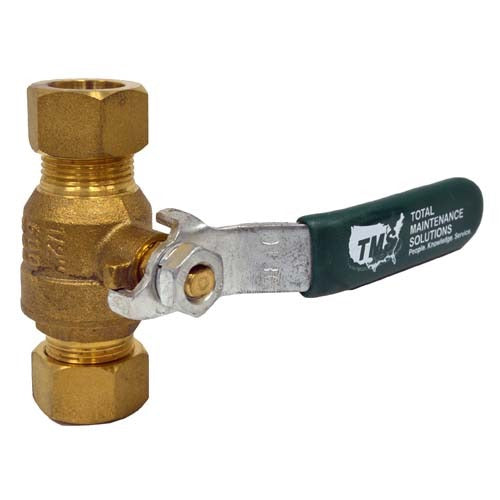

Jomar Valve C0M0501000LF Tms Ball Valve 5/8 in Od

Product Description

The JOMAR VALVE C0M0501000LF TMS is a lead-free compression ball valve designed for shut-off and flow control in potable water and plumbing systems. The compression fitting connection accepts 5/8-inch OD tubing, allowing a tool-assisted, solderless installation. The lead-free construction meets regulatory requirements for use on drinking water lines. Licensed plumbers and pipefitters install this valve in residential and light commercial water supply applications where code compliance and reliable shut-off are required.

This ball valve is suited for residential water supply lines, under-sink connections, and light commercial plumbing installations where a compression-end ball valve is specified. The 5/8-inch OD compression configuration makes it compatible with standard copper or approved synthetic tubing of the matching outside diameter. It is typically installed in accessible locations for service and shut-off convenience.

Key Features

• Lead-free construction for compliance with potable water regulations
• 5/8-inch OD compression connection for solderless, tool-assisted installation
• Ball valve design provides full-flow shut-off with a quarter-turn operation
• Suitable for residential and light commercial water supply service

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for plumbing systems using 5/8-inch OD compression fittings in potable water service.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the main water supply and relieve line pressure before beginning work. Ensure tubing is cut cleanly and deburred before seating in the compression fitting to achieve a leak-free connection. Do not overtighten the compression nut, as this can deform the ferrule and compromise the seal.

Technical Specifications

• Connection Type: Compression
• Tubing OD: 5/8 inches
• Lead Free: Yes
• Valve Type: Ball Valve

Standard Information

• Brand: JOMAR VALVE
• Manufacturer Part Number: C0M0501000LF TMS
