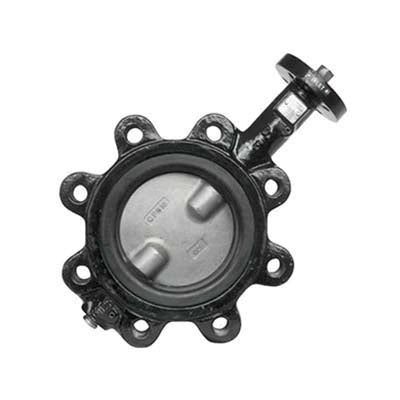

Jomar Valve 600-08DSPB Bare Stem Butterfly Valve 8 in

Product Description

The Jomar Valve 600-08DSPB is a bare stem butterfly valve designed for reliable use in commercial and industrial applications. This valve features a lug connection type and has a connection size of eight inches. It provides ease of installation and operation with key features that enhance performance and compatibility with various systems.

• Easily accepts actuator with ISO 5211 mounting flange
• Seat to flange seal eliminates the need for flange gaskets
• Bidirectional lug bodies suitable for dead end service

Product Highlights

This valve is ideal for mounting pneumatic or electric actuators and features a square stem for direct mount. The wetted surfaces are certified to contain less than 0.25% lead content, making it compliant with health safety standards.

Product Information

Standard Information

• Brand: Jomar Valve
• Manufacturer: Jomar Valve

Technical Specifications

• Connection Size: 8 in
• Connection Type: Lug
• Dimension: 18.74 in H
• Disc Material: Stainless Steel
• Item Name: Butterfly Valve
• Material Specifications: CF8M
• Material: Ductile Iron
• Model: BFV-Lug
• Pressure Rating: 200 psi
• Seat Material: PTFE
• Type: Bare Stem
