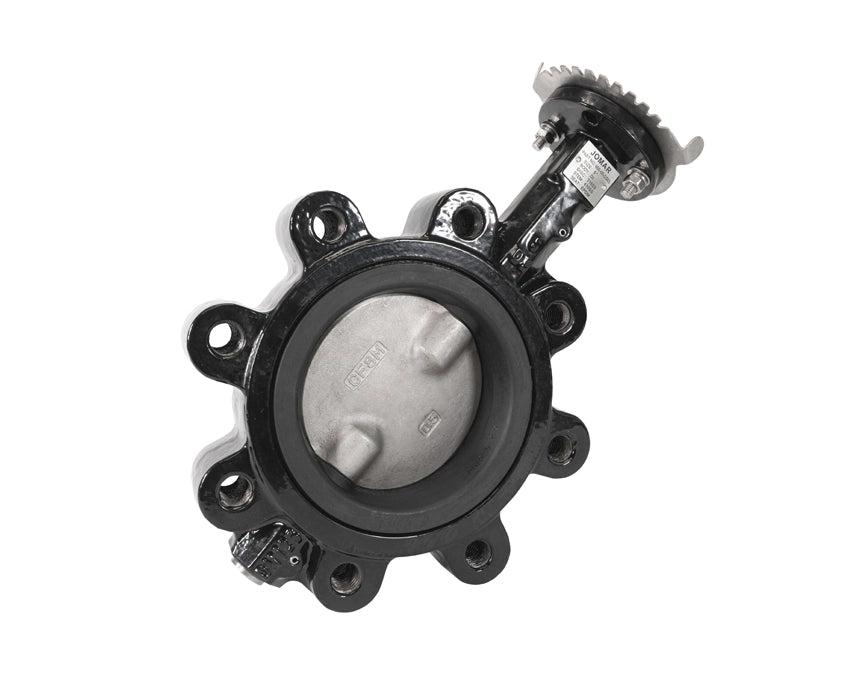

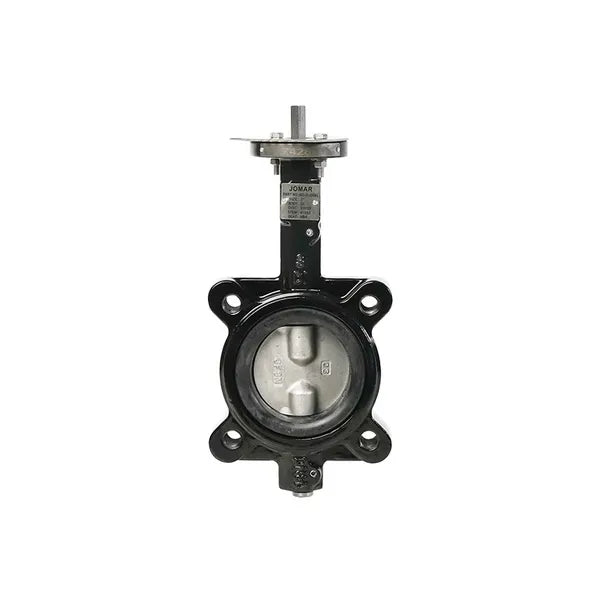

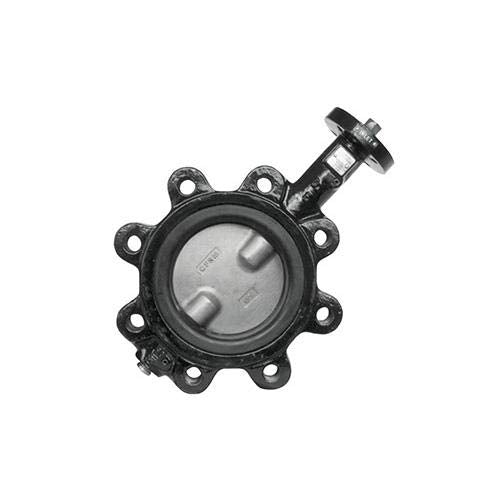

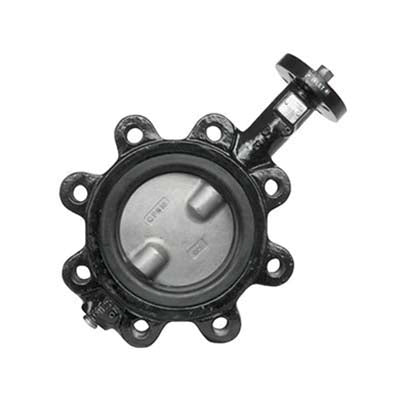

Jomar Valve 600-05DSPL 5 inches butterfly valve, epoxy-coated ductile iron body

Product Description

The Jomar Valve 600-05DSPL is a 5-inch BFV-Lug Ductile Iron Butterfly Valve, suitable for commercial and industrial applications. It features an epoxy-coated ductile iron body, stainless steel disc, and a lug connection. This valve easily accepts actuators via an ISO 5211 mounting flange and square stem for direct mounting. Its Series 600 lug body allows bidirectional dead end service. Wetted surfaces contain less than 0.25% lead content, meeting MSS SP-67, API 609, NSF 61, and 372 standards.

• Easily accepts actuator with ISO 5211 mounting flange
• Seat to flange seal eliminates the need for flange gaskets
• Series 600 lug bodies are bidirectional for dead end service

Product Highlights

Ideal for commercial and industrial applications, featuring a square stem for direct actuator mounting and bidirectional dead end service.

Product Information

Standard Information

• Brand: JOMAR VALVE
• Manufacturer Part Number: 600-05DSPL

Technical Specifications

• Brand: Jomar Valve
• MPN: 600-05DSPL
• Valve Type: Butterfly Valve
• Model: BFV-Lug
• Size: 5 in
• Connection Type: Lug
• Body Material: Epoxy-Coated Ductile Iron
• Disc Material: Stainless Steel
• Seat Material: PTFE

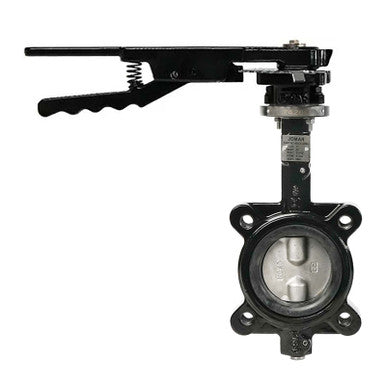

• Operator Type: Lever Handle
• Pressure Rating: 200 psi
• Material Specification: CF8M
• Stem Type: Square Stem
• Actuator Mounting: Direct Mount, ISO 5211 Flange Compatible
• Application: Commercial, Industrial, Potable Water
• Standards/Certifications: MSS SP-67, API 609, NSF 61 and 372 certified
• Lead Content: Less than 0.25% (wetted surfaces)
• Operation: Bidirectional for Dead End Service
• Seat Options: EPDM, PTFE, Buna-N, VITON
