Jomar Valve 600-04DSPL Butterfly Valve 4 in Replacement MPN

Product Description

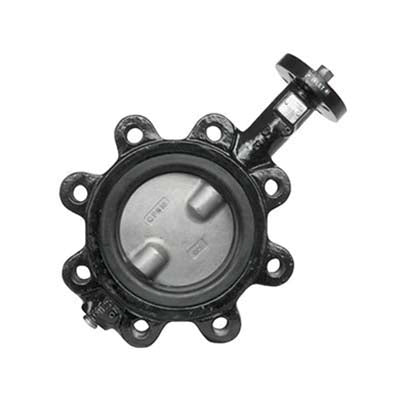

The Jomar Valve 600-04DSPL is a ductile iron butterfly valve designed for various commercial and industrial applications. This valve is equipped with a lug connection type, making it easy to install in tight spaces. It is manufactured with high-quality materials, ensuring durability and performance.

• Easily accepts actuator with ISO 5211 mounting flange
• Seat to flange seal eliminates the need for flange gaskets
• Series 600 lug bodies are bidirectional for dead end service

Product Highlights

This valve is ideal for mounting pneumatic and electrical actuators. It features a square stem for direct mounting and contains less than 0.25% lead content on wetted surfaces, promoting safety and compliance.

Product Information

Standard Information

• Brand: Jomar Valve
• Type: Butterfly Valve

Technical Specifications

• Connection Size: 4 in
• Connection Type: Lug
• Dimension: 13.62 in H
• Disc Material: Stainless Steel
• Material: Ductile Iron
• Model: BFV-Lug
• Operator Type: Lever Handle
• Pressure Rating: 200 psi
• Seat Material: PTFE
• Standards/Certifications: MSS SP-67, API 609, NSF 61 and 372 certified
