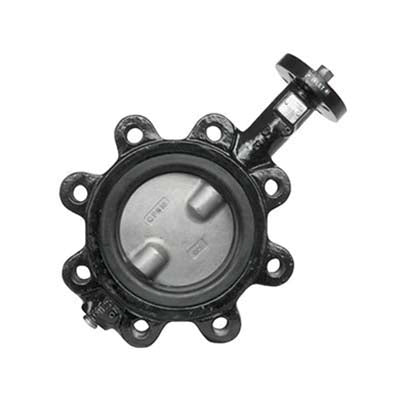

Jomar Valve 600-03DSPL BFV-Lug Ductile Iron Butterfly Valve 3 in

Product Description

The Jomar Valve 600-03DSPL is a three-inch ductile iron butterfly valve designed for reliable performance in commercial and industrial applications. This valve features a lug connection type, allowing for easy installation and maintenance.

• Easy actuator mounting with ISO 5211
• Eliminates flange gaskets for a tight seal
• Bidirectional, suitable for dead end service

Product Highlights

This valve is ideal for use with pneumatic or electrical actuators and has a square stem for direct mounting. It contains less than 0.25% lead in wetted surfaces, complying with industry standards.

Product Information

Standard Information

• Brand: Jomar Valve
• Part Number: 600-03DSPL

Technical Specifications

• Connection Size: 3 in
• Connection Type: Lug
• Dimension: 12.13 in H
• Disc Material: Stainless Steel
• Item Name: Butterfly Valve
• Material Specifications: CF8M
• Material: Ductile Iron
• Model: BFV-Lug
• Operator Type: Lever Handle
• Pressure Rating: 200 psi
• Seat Material: PTFE
