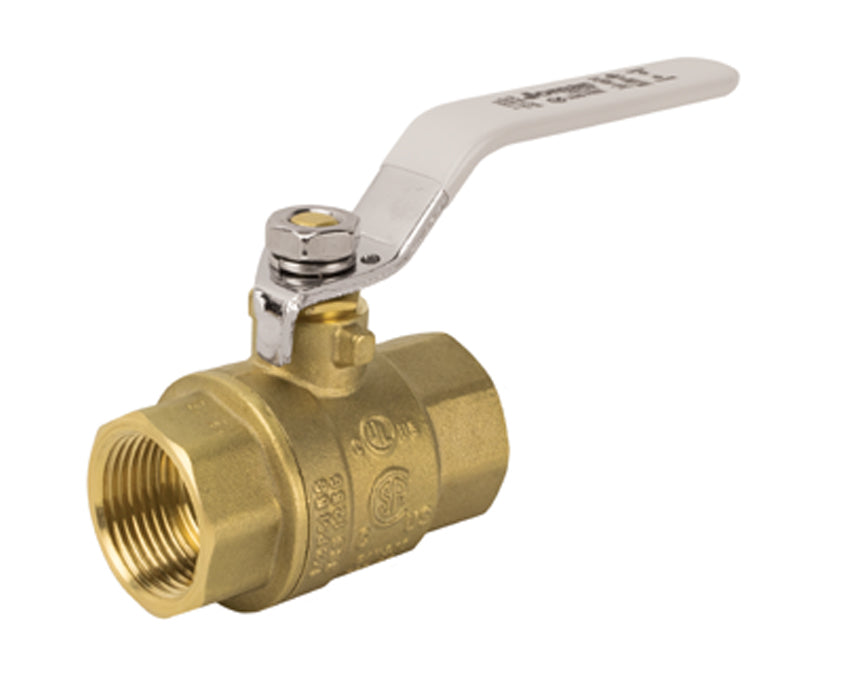

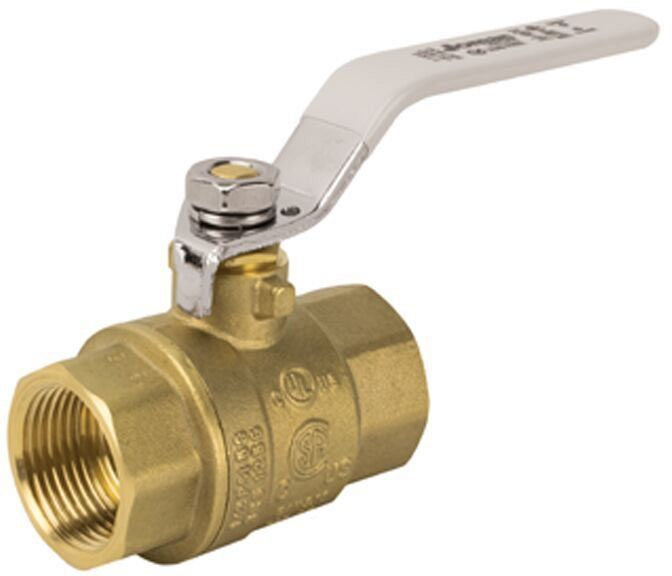

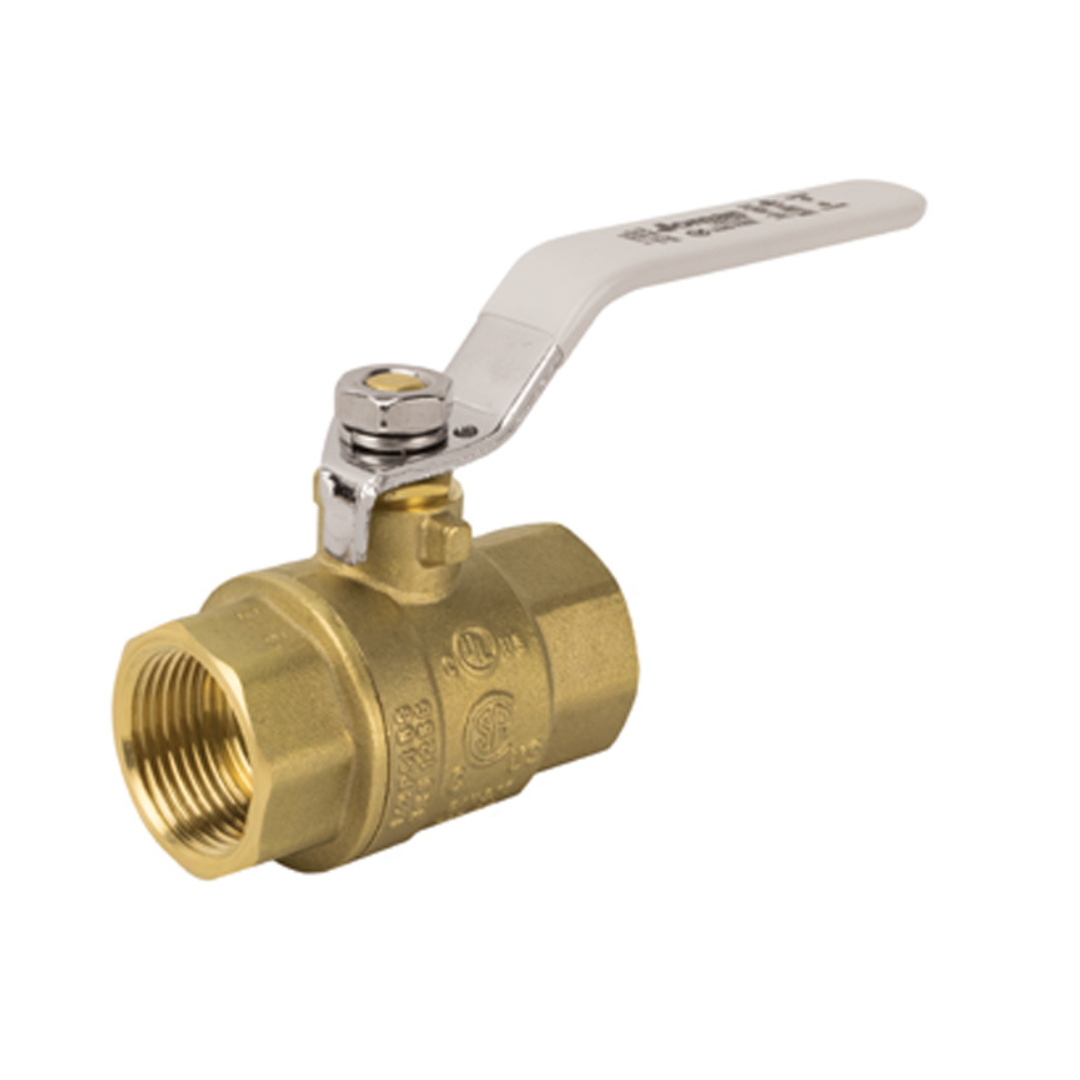

Jomar Valve 150-111G T-150G 4 Inch Lead Free Brass Ball Valve

Product Description

The JOMAR VALVE 150-111G is a T-150G 2-piece lead-free ball valve with a 4-inch threaded connection. It is designed for 600 psi WOG and 150 psi WSP. The valve features a brass body, chrome-plated brass ball, and brass stem trim. It also includes a Viton O-Ring and PTFE seat/stem packing softgoods.

• Dezincification resistant brass alloy
• Gland follower and single O-Ring stem design
• Blow-out proof stem
• Wetted surfaces contain less than 0.25% lead content

Product Highlights

This lead-free brass ball valve features a full port and threaded connection, making it suitable for various applications.

Product Information

Standard Information

• Brand: JOMAR VALVE
• Manufacturer Part Number: 150-111G

Technical Specifications

• Type: 2-Piece, Lead-Free
• Series: T-150G
• Nominal Size: 4 Inch
• End Style: Threaded
• Pressure Rating: 600 psi WOG, 150 psi WSP
• Port Type: Full
• Body Material: Brass
• Ball Material: Chrome-Plated Brass
• Trim Material: Brass Stem
• Softgoods Material: Viton O-Ring, PTFE Seat/Stem Packing
• Overall Length (in): 7.23 in
• Thread Size (in): 4 in
• Model #: 150-111G
• Description: 4 in. Full Port, 2 Piece, Threaded Connection, 600 WOG
