Jomar Valve 150-103G 2-Piece Ball Valve 1/2 in FNPT

Product Description

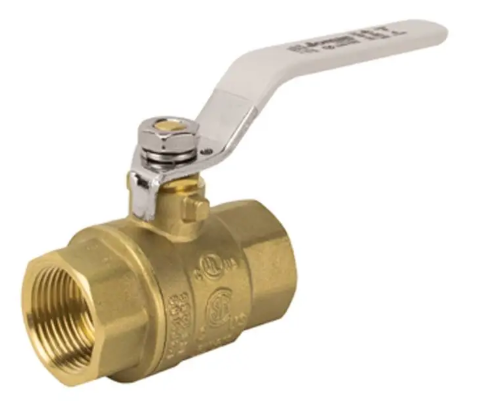

The JOMAR VALVE 150-103G is a 2-Piece Ball Valve with a 1/2 in FNPT connection. It features a brass body and a chrome-plated brass ball. This full port valve is designed for 600 psi WOG and has PTFE/FKM softgoods. The inlet to outlet length is 2.09 inches, and the top to inlet center is 1.78 inches.

• Dezincification resistant brass alloy
• Gland follower and single O-Ring stem design
• Blow-out proof stem

Product Highlights

Full port, 2-piece ball valve with dezincification resistant brass alloy and a blow-out proof stem.

Product Information

Standard Information

• Brand: JOMAR VALVE
• Manufacturer Part Number: JOMAR-150-103G

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 2.09 in
• Nominal Size: 1/2 In
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/FKM
• Top to Inlet Center: 1.78 in
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
• Item: Ball Valve
• Size: 1/2"
• Port: Full Port
• Design Type: 2-Piece
• End Connection: NPT Threaded
• Handle Type: Lever
• Seat Material: PTFE
• Stem Material: Brass
• Stem Design: Blowout Proof
• Max Pressure: 600 psi WOG, 150 psi steam
• Max Temp: 500°F
