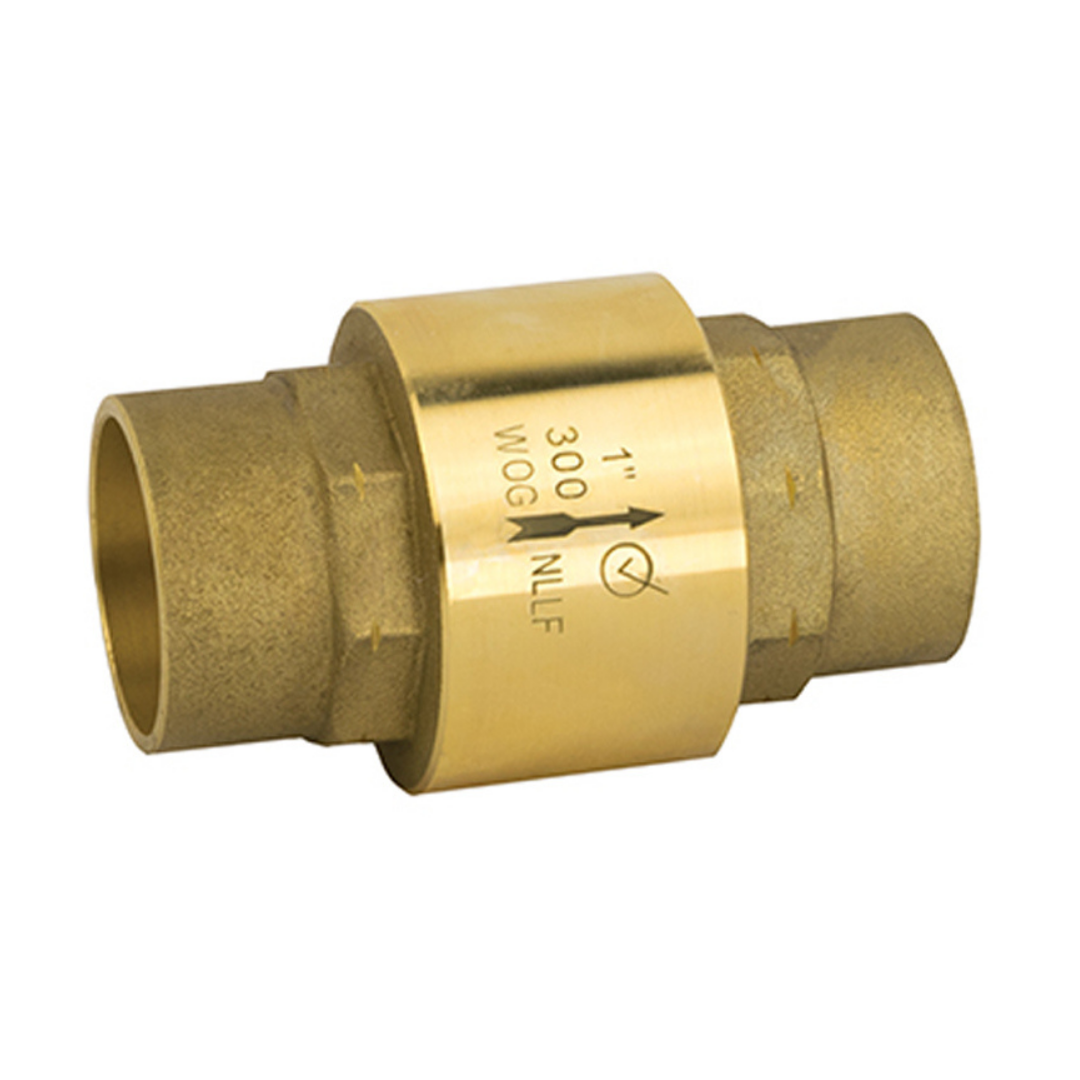

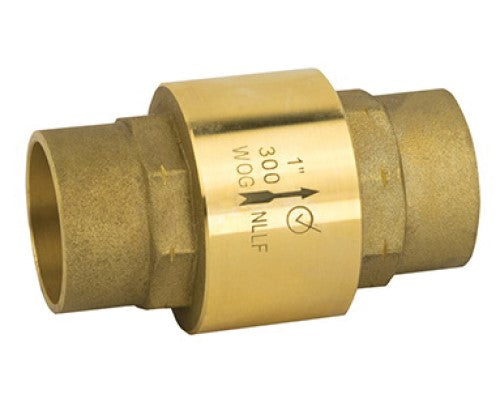

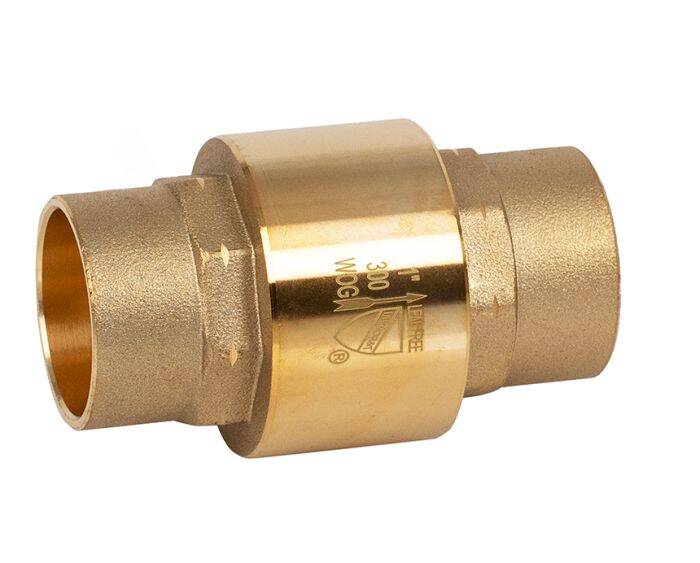

Jomar Valve 105-616G S-521G In-Line Check Valve 1-1/4 in

Product Description

The JOMAR VALVE 105-616G S-521G is an in-line check valve with a 1-1/4 inch size and solder connection. It features a 150 lb pressure rating and a brass body with low lead compliance. This valve can be installed in any position and has a bubble-tight Teflon seal.

• Can be installed in any position
• Forged lead free brass body
• Bubble tight teflon seal

Product Highlights

This in-line check valve is suitable for various applications requiring reliable backflow prevention. Its lead-free brass construction ensures compliance with health and safety standards.

Product Information

Standard Information

• Brand: JOMAR VALVE
• Manufacturer Part Number: 105-616G

Technical Specifications

• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 2.17 in
• Low Lead Compliance: Yes
• Mfg Standards/Approvals: ASME B16.18
• Nominal Size: 1-1/4 in
• Pressure Class: 150 lb
• Series: S-521G
• Softgoods Material: PTFE Seal
• Temperature Rating: 250 deg F
• Trim Material: PTFE
• Part No.: 105-616G
• Connection: Solder
• Material: Lead Free Brass
• WOG: 300
• Class: 150
