Jomar Valve 105-406G Swing Check Valve Class 150 1-1/4 in Replacement MPN

Product Description

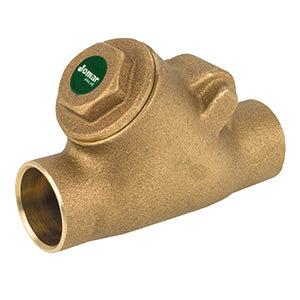

The Jomar Valve 105-406G is a Class 150 bronze Y-pattern swing check valve designed for use in plumbing systems. It features a connection size of one and one-quarter inches and utilizes a solder connection type, making it suitable for various applications in residential and commercial settings. This lead-free check valve can be installed in both vertical and horizontal positions to accommodate diverse installation requirements.

• Lead-free construction
• Can be installed vertically or horizontally
• Wetted surfaces contain less than 0.25% lead

Product Highlights

This valve complies with multiple standards and certifications, including MSS SP-80 and NSF 372, ensuring safe usage in plumbing systems.

Product Information

Standard Information

• Brand: Jomar Valve
• Manufacturer: Jomar Valve

Technical Specifications

• Connection Size: 1-1/4 in
• Connection Type: Solder
• Dimension: 4.72 in L
• Disc Material: Bronze
• Item Name: Swing Check Valve
• Material: Bronze
• Model: S-511G
• Pressure Class: Class 150
• Pressure Rating: 150 psi WSP, 300 psi WOG
• Seat Material: PTFE
• Type: Y-Pattern
• Applications: For residential and commercial applications
• Standards/Certifications: MSS SP-80, ASME/ANSI B16.18, NSF 372, Truesdail certified
