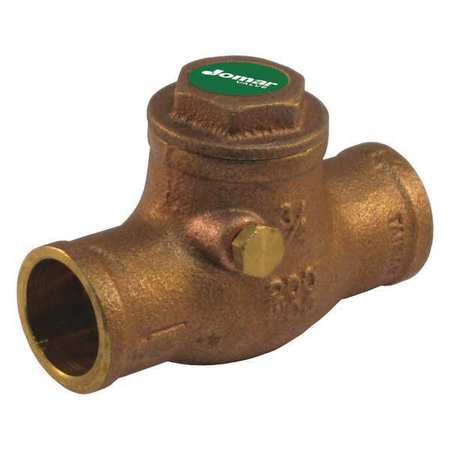

Jomar Valve 105-208G S-501G Horizontal Swing Check Valve, 2 in, Solder, 125 lb

Product Description

Jomar Valve 105-208G is a horizontal swing check valve designed for plumbing applications. This valve has a two-inch size and features a solder end connection. It is made from cast brass material and has a pressure class of 125 lb. The valve is suitable for commercial and residential use.

• Lead-free wetted surface
• 200 WOG rating
• Spring-assisted actuator type

Product Highlights

Jomar Valve 105-208G is compliant with low lead standards, ensuring safe usage in various applications. It meets manufacturing standards such as ASME/ANSI B16.18 and IAPMO certified.

Product Information

Standard Information

• Brand: Jomar Valve
• Part Number: J6083

Technical Specifications

• Actuator Type: Spring Assisted
• Application: Commercial and Residential
• Body Material: Cast Brass
• End Style: Solder
• Inlet to Outlet Length: 5.99 inches
• Low Lead Compliance: Yes
• Mfg Standards/Approvals: ASME/ANSI B16.18, IAPMO Certified, NSF 372, UPC Listed
• Nominal Size: 2 inches
• Package Weight: 70.0 lb
• Pressure Class: 125 lb
• Series: S-501G
• Top to Inlet Center: 2.68 inches
• Trim Material: Forged Brass
• Type: Horizontal
