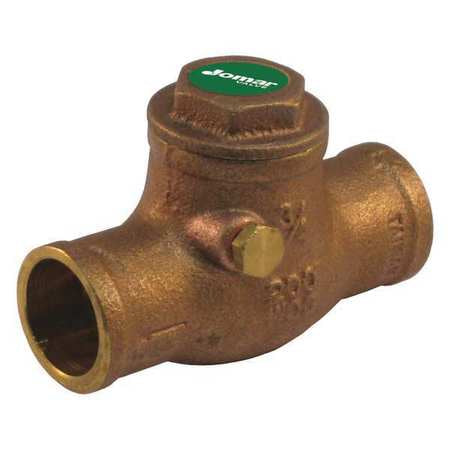

Jomar Valve 105-204G S-501G Horizontal Swing Check Valve 3/4 in Solder Joint 125 lb

Product Description

The Jomar Valve 105-204G is a horizontal swing check valve designed for reliable fluid control. This valve features a solder joint end style and is suitable for both commercial and residential use. It operates under a pressure class of one hundred twenty-five pounds and is made from cast brass.

• Nominal size of three-quarters of an inch
• Spring-assisted actuator for optimal performance
• Low lead compliance for water safety

Product Highlights

This swing check valve is ideal for preventing backflow in plumbing systems. Its solid construction meets various industry standards for safety and reliability.

Product Information

Standard Information

• Brand: Jomar Valve
• Manufacturer Part No: 105-204G

Technical Specifications

• Type: Horizontal
• Series: S-501G
• Nominal Size: 3/4 in
• Pressure Class: 125 lb
• Body Material: Cast Brass
• Trim Material: Forged Brass
• Actuator Type: Spring
• Inlet to Outlet Length: 3.11 in
• Top to Inlet Center: 1.62 in
• Low Lead Compliance: Yes
• Mfg Standards/Approvals: ASME/ANSI B16.18, IAPMO Certified, NSF 372, UPC Listed
