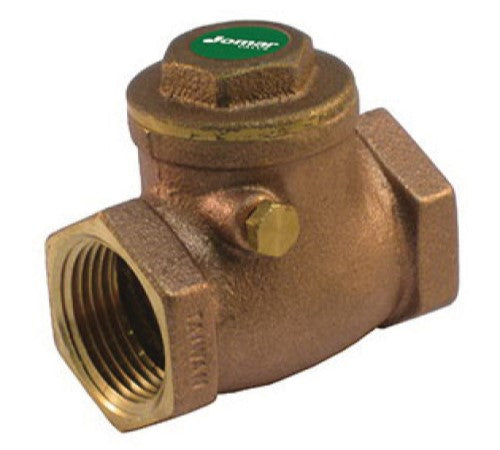

Jomar Valve 105-108G T-501G Horizontal Swing Check Valve 2 in NPT 125 lb

Product Description

The Jomar Valve 105-108G is a reliable horizontal swing check valve designed for commercial and residential applications. It features a two-inch nominal size with an NPT end style and operates at a pressure class of 125 lb.

• Spring assisted actuator for efficient operation
• Lead-free wetted surface for safety
• Durable cast brass body with forged brass trim

Product Highlights

This valve meets ANSI B1.20.1 standards and is IAPMO certified, making it a safe choice for various plumbing needs.

Product Information

Standard Information

• Brand: Jomar Valve
• Manufacturer Part No: 105-108G

Technical Specifications

• Type: Horizontal
• Series: T-501G
• Nominal Size: 2 in
• Actuator Type: Spring Assisted
• Body Material: Cast Brass
• Trim Material: Forged Brass
• End Style: NPT
• Inlet to Outlet Length: 4.3 in
• Low Lead Compliance: Yes
• Pressure Class: 125 lb
• Top to Inlet Center: 2.68 in
• Package Weight: 70 lb
• Mfg Standards/Approvals: ANSI B1.20.1, IAPMO Certified, NSF 372
