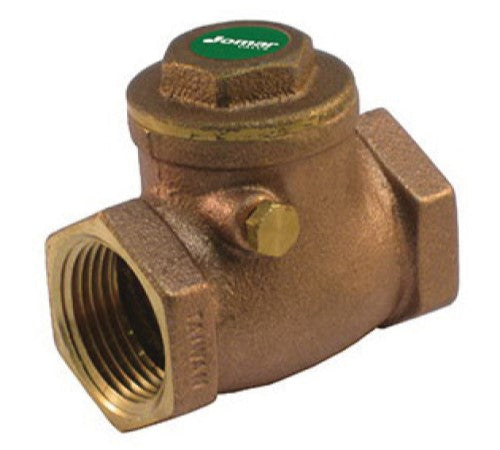

Jomar Valve 105-105G T-501G Horizontal Swing Check Valve 1 in NPT 125 lb

Product Description

The Jomar Valve 105-105G is a 1 inch horizontal swing check valve designed for reliable performance in plumbing applications. With a NPT end style and a pressure class of 125 lb, this valve is suitable for both residential and commercial use.

• Low lead compliant construction
• Spring actuator for enhanced functionality
• Robust cast brass body

Product Highlights

This swing check valve is built to provide durability with a cast brass body and forged brass trim, ensuring longevity under pressure. It has a low lead compliance for safe drinking water applications.

Product Information

Standard Information

• Manufacturer: Jomar Valve
• Type: Horizontal

Technical Specifications

• MPN: 105-105G
• Nominal Size: 1 inch
• Inlet to Outlet Length: 2.72 inches
• Pressure Class: 125 lb
• Top to Inlet Center: 1.77 inches
• Body Material: Cast Brass
• Trim Material: Forged Brass
• Actuator Type: Spring
• Low Lead Compliance: Yes
• Mfg Standards/Approvals: ANSI B1.20.1, IAPMO Certified, NSF 372
