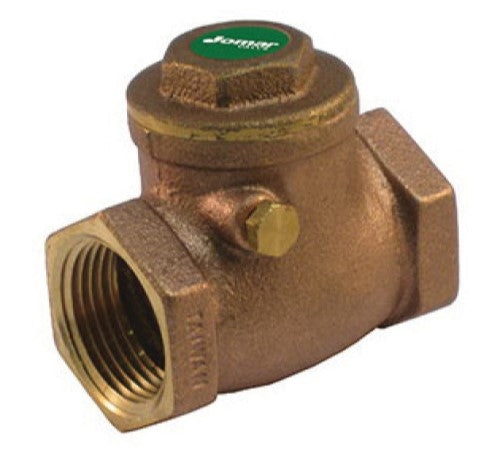

Jomar Valve 105-104G T-501G Horizontal Swing Check Valve 3/4 in NPT 125 lb

Product Description

The Jomar Valve 105-104G is a horizontal swing check valve designed for reliable flow control. Crafted from cast brass, this valve is suitable for both commercial and residential applications. It features a nominal size of three-fourths of an inch with an NPT end style. With a pressure rating of 125 pounds, it ensures robust performance in various plumbing systems. The low lead compliance makes it a safe choice for potable water systems.

• Wetted surface contains less than 0.25% lead content.
• Pressure rating of 125 lb with ANSI B1.20.1 standards.
• Spring actuator provides efficient operation.

Product Highlights

The Jomar Valve 105-104G facilitates smooth and safe fluid movement. Its design allows easy installation and maintenance.

Product Information

Standard Information

• Brand: Jomar Valve
• Manufacturer Part No: 105-104G

Technical Specifications

• Type: Horizontal
• Series: T-501G
• Nominal Size: 3/4 in
• Actuator Type: Spring
• Body Material: Cast Brass
• Trim Material: Forged Brass
• Pressure Class: 125 lb
• Inlet to Outlet Length: 2.33 in
• Top to Inlet Center: 1.62 in
• Low Lead Compliance: Yes
• Mfg Standards/Approvals: ANSI B1.20.1, IAPMO Certified, NSF 372
• Package Weight: 78 lb
