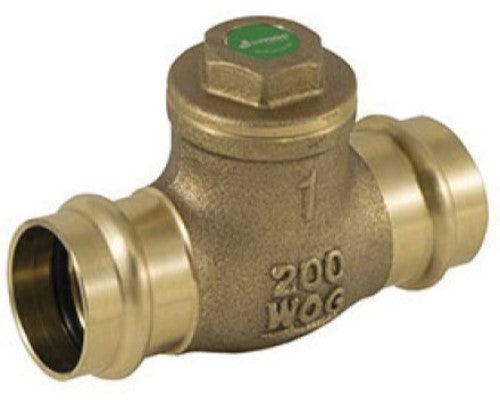

Jomar Valve 105-008G P-501G 1-Piece Horizontal Swing Check Valve, 2 in, Press, 125 lb, Cast Brass Body

Product Description

The Jomar Valve 105-008G is a P-501G 1-piece horizontal swing check valve designed for reliable fluid control. This valve is made from cast brass and is suitable for a nominal size of two inches. It offers low lead compliance and is constructed for heavy-duty applications.

• Dezincification resistant brass for durability
• 200 WOG rating facilitates high-pressure applications
• Suitable for various plumbing applications

Product Highlights

This valve features a robust build with a metal-to-metal disc seal, ensuring secure closure against backflow. It meets industry standards for lead content and pressure class ratings.

Product Information

Standard Information

• Brand: Jomar Valve
• Part #: J6068

Technical Specifications

• Actuator Type: Spring Assisted
• Body Material: Cast Brass
• Dimensions: 4.1 inches H
• End Style: Press
• Inlet to Outlet Length: 6.06 inches
• Low Lead Compliance: Yes
• Mfg Standards/Approvals: C87850 Body, C69300 Disc, IAPMO PS 117
• Nominal Size: 2 inches
• Package Weight: 70.0 lb
• Pressure Class: 125 lb
• Series: P-501G
• Softgoods Material: EPDM O-Ring, Seal
• Trim Material: Brass
• Type: 1-Piece Horizontal
