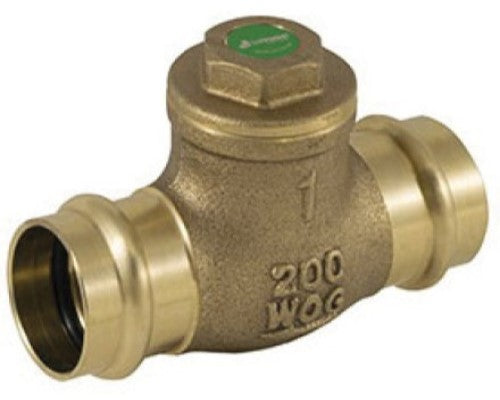

Jomar Valve 105-005G P-501G 1-Piece Horizontal Swing Check Valve 1 in Press 125 lb

Product Description

The Jomar Valve 105-005G is a 1-piece horizontal swing check valve designed for plumbing applications. This valve is constructed from cast brass and is compliant with low lead standards. It is suitable for press connections and can handle up to 125 lbs of pressure.

• Dezincification resistant brass
• Heavy pattern cast brass construction
• Metal to metal disc seal

Product Highlights

This valve is designed with a spring-assisted actuator and features a metal to metal disc seal for reliable performance. It is ideal for both residential and commercial plumbing systems.

Product Information

Standard Information

• Brand: Jomar Valve
• Part Number: J6065

Technical Specifications

• Actuator Type: Spring Assisted
• Body Material: Cast Brass
• Dimensions: 2.59 in H
• End Style: Press
• Inlet to Outlet Length: 3-3/4 in
• Low Lead Compliance: Yes
• Mfg Standards/Approvals: C87850 Body, C69300 Disc, IAPMO PS 117
• Nominal Size: 1 in
• Package Weight: 74.0 lb
• Pressure Class: 125 lb
• Series: P-501G
• Softgoods Material: EPDM O-Ring, Seal
• Trim Material: Brass
• Type: 1-Piece Horizontal
