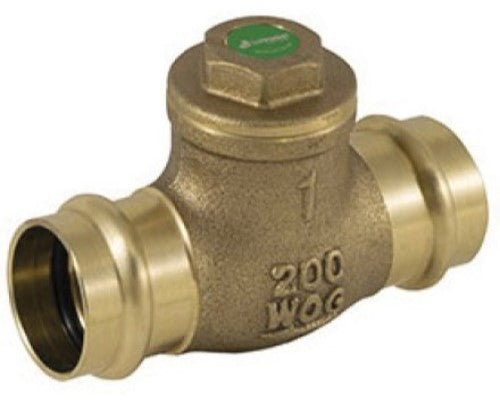

Jomar Valve 105-003G P-501G 1-Piece Horizontal Swing Check Valve, 1/2 in, Press, 125 lb, Cast Brass Body

Product Description

The Jomar Valve 105-003G is a 1-piece horizontal swing check valve. It is designed for plumbing applications and features a durable cast brass body. This valve complies with low lead standards and is suitable for use in water systems. The valve is rated for a pressure class of 125 lb, making it suitable for various plumbing needs.

• Dezincification resistant brass
• Heavy pattern cast brass construction
• Metal to metal disc seal

Product Highlights

This valve ensures reliable performance and longevity in plumbing systems.

Product Information

Standard Information

• Brand: Jomar Valve
• Part #: J6063

Technical Specifications

• Actuator Type: Spring Assisted
• Body Material: Cast Brass
• Dimensions: 2.1 in H
• End Style: Press
• Inlet to Outlet Length: 2.97 in
• Low Lead Compliance: Yes
• Mfg Standards/Approvals: C87850 Body, C69300 Disc, IAPMO PS 117
• Nominal Size: 1/2 in
• Package Weight: 76.0 lb
• Pressure Class: 125 lb
• Series: P-501G
• Softgoods Material: EPDM O-Ring, Seal
• Trim Material: Brass
• Type: 1-Piece Horizontal
