Jomar Valve 104-529PG 2-Piece Ball Valve With Handle 2-1/2 in Replacement MPN

Product Description

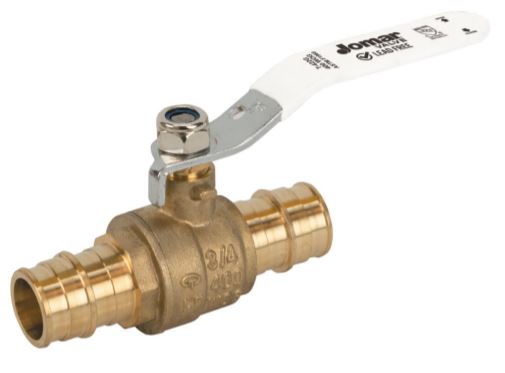

This Jomar Valve 104-529PG is a two-piece ball valve designed for plumbing applications. This valve features a brass body and an expansion PEX end style. Its PTFE/Buna-N soft goods ensure reliability in various conditions.

• Gland follower and single O-Ring stem design
• Blow-out proof stem
• 100% leak tested

Product Highlights

This ball valve offers a dependable performance suitable for residential and commercial plumbing systems.

Product Information

Standard Information

• Brand: Jomar Valve
• Part #: R1119

Technical Specifications

• Ball Material: Stainless Steel
• Body Material: Brass
• End Style: Expansion PEX
• Inlet to Outlet Length: 8.8 inches
• Mfg Standards/Approvals: ASTM F1960, C46400 Body, cUPC Listed, IAPMO/ANSI Z1157-2014, NSF 61-8/372, NSF/ANSI 14-2014
• Nominal Size: 2-1/2 inches
• Package Weight: 34.0 lb
• Port Type: Standard
• Pressure Rating: 400 psi WOG
• Softgoods Material: PTFE/Buna-N
• Temperature Rating: 200 degrees F
• Top to Inlet Center: 3.04 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
