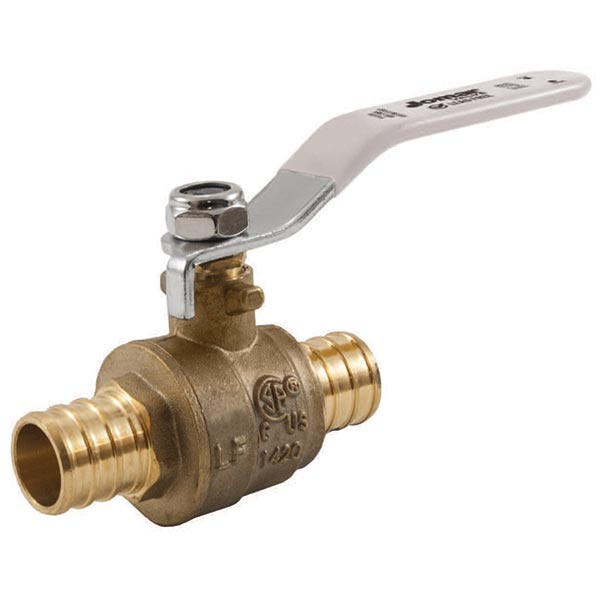

Jomar Valve 103-527PG 2-Piece Ball Valve 1-1/2 in Crimp PEX

Product Description

The Jomar Valve 103-527PG is a 2-piece ball valve designed for use in plumbing applications. It features crimp PEX ends and is made from brass for durability. This valve has a nominal size of one and a half inches and standard port design. The valve is equipped with PTFE and EPDM soft goods for improved sealing.

• Lead-free and dezincification-resistant brass material
• Blow-out proof stem with 100% leak testing
• Crimp connection rated to 100 psi WOG up to 180 degrees Fahrenheit

Product Highlights

Reliable performance for residential and commercial plumbing.

Product Information

Standard Information

• Brand: Jomar Valve
• Part Number: 103-527PG

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Crimp PEX
• Mfg Standards/Approvals: ASME A112.4.14 | ASTM F1807 | C46400 Body | CSA Certified | cUPC Listed | IAPMO/ANSI Z1157-2014 | NSF 61-8/372 | NSF/ANSI 14-2014
• Nominal Size: 1-1/2 in
• Port Type: Standard
• Pressure Rating: 400 psi WOG
• Softgoods Material: PTFE/EPDM
• Temperature Rating: 180 degrees Fahrenheit
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-piece
