Jomar Valve 103-526PG 2-Piece Ball Valve 1-1/4 in Crimp PEX

Product Description

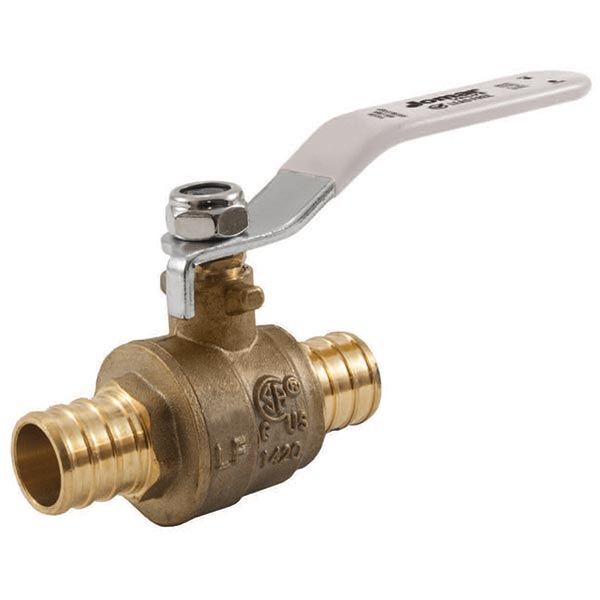

The Jomar Valve 103-526PG is a reliable two-piece ball valve designed for plumbing applications. This product features a crimp PEX end style and a robust brass body. It is constructed to provide durability and effective flow control in various systems.

• Lead-free design ensuring safety and compliance.
• 100% leak tested for reliability.
• Rated for a maximum pressure of four hundred psi WOG.

Product Highlights

This valve meets multiple standards for safety and is suitable for both residential and commercial use.

Product Information

Standard Information

• Brand: Jomar Valve
• MPN: 103-526PG

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Crimp PEX
• Inlet to Outlet Length: 3.62 inches
• Mfg Standards/Approvals: ASME A112.4.14, ASTM F1807, CSA Certified, cUPC Listed, NSF 61-8/372, NSF/ANSI 14-2014
• Nominal Size: 1-1/4 inches
• Pressure Rating: 400 psi WOG
• Temperature Rating: 180 degrees F
• Softgoods Material: PTFE/EPDM
• Type: 2 piece
