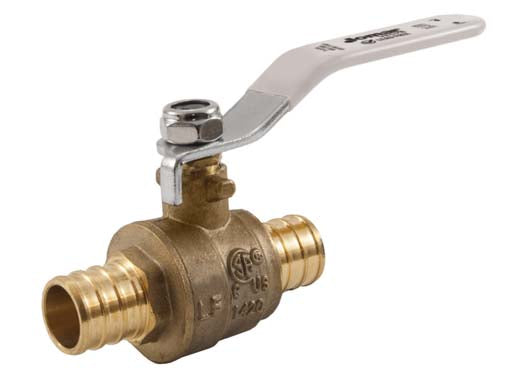

Jomar Valve 103-523PG 2-Piece Ball Valve, 1/2 in Nominal, PEX Crimp End Style, Brass Body, Standard Port

Product Description

The Jomar Valve model 103-523PG is designed for reliable flow control in plumbing systems. This two-piece ball valve features a 1/2 inch nominal size and a PEX crimp end style. Its brass body and standard port design ensure durability and efficiency.

• Gland follower and single O-Ring stem design
• Blow-out proof stem
• 100% leak tested

Product Highlights

The Jomar Valve 103-523PG meets industry standards and is suitable for residential and commercial applications requiring dependable shut-off capabilities.

Product Information

Standard Information

• Brand: Jomar Valve
• Part #: R1388

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: PEX Crimp
• Inlet to Outlet Length: 2.47 inches
• Mfg Standards/Approvals: ASME A112.4.14, ASTM F1807, C46400 Body, CSA Certified, cUPC Listed, IAPMO/ANSI Z1157-2014, NSF 61-8/372, NSF/ANSI 14-2014
• Nominal Size: 1/2 inch
• Port Type: Standard
• Pressure Rating: 400 psi WOG
• Softgoods Material: PTFE/EPDM
• Temperature Rating: 180 degrees F
• Top to Inlet Center: 1-1/2 inches
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
