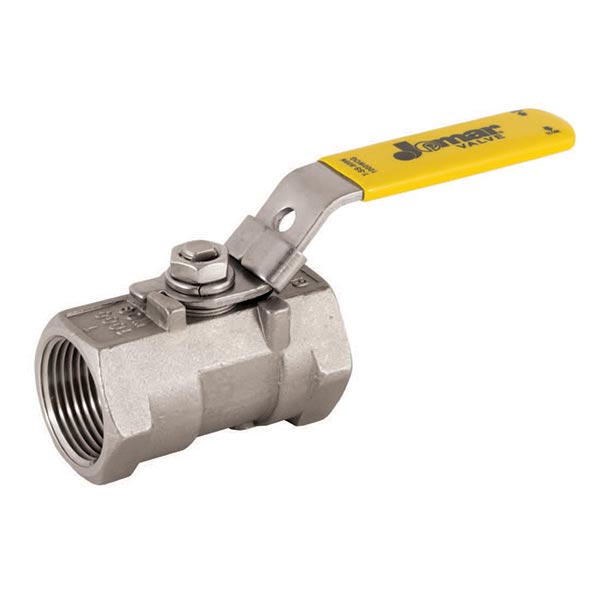

Jomar Valve 100-907 1-Piece Ball Valve With Handle, 1-1/2 in, NPT, Stainless Steel Body

Product Description

The Jomar Valve 100-907 is designed for reliable use in plumbing applications. This 1-piece ball valve features a stainless steel body and a handle for easy operation. The valve has a nominal size of one and one-half inches with a reduced port style. The NPT end style supports secure connections. This ball valve is built to last with a PTFE seal, making it suitable for high-pressure environments.

• Blow-out proof stem
• 100% leak tested
• Standard locking device

Product Highlights

This valve is essential for controlling fluid flow in various plumbing systems. It is crafted with high-quality materials ensuring durability and safety.

Product Information

Standard Information

• Brand: Jomar Valve
• Part Number: M1634

Technical Specifications

• Type: 1-Piece
• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• End Style: NPT
• Nominal Size: 1-1/2 in
• Port Type: Reduced
• Pressure Rating: 1000 psi WOG
• Softgoods Material: PTFE
• Inlet to Outlet Length: 3.39 in
• Top to Inlet Center: 2.24 in
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
• Mfg Standards/Approvals: ANSI B1.20.1 | CF8M Body | MSS SP-110
