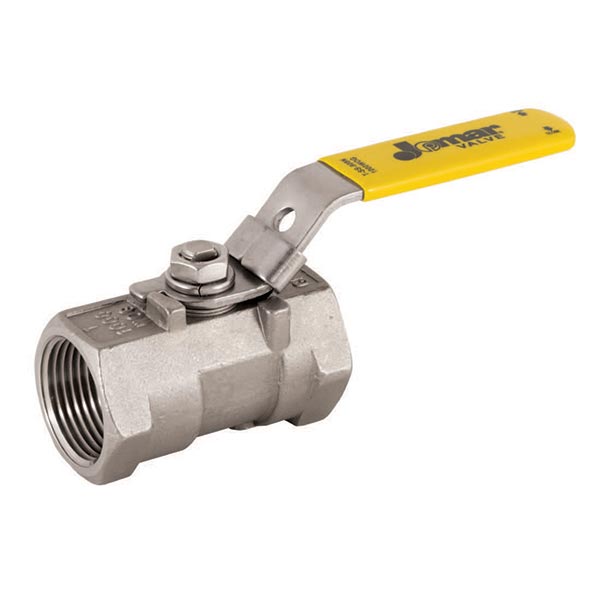

Jomar Valve 100-906 1-Piece Ball Valve With Handle, 1-1/4 in, NPT, Stainless Steel Body, Reduced Port

Product Description

The Jomar Valve 100-906 is a 1-piece ball valve designed for reliable shut-off control. This valve features a stainless steel body and is suitable for various plumbing applications. It has a nominal size of 1-1/4 inches with a reduced port and NPT end style. The valve is constructed to meet industry standards and ensure durability in demanding environments.

• Blow-out proof stem
• 100% leak tested
• PTFE stem seal and thrust washer

Product Highlights

This valve is essential for professionals who need a dependable solution for fluid control in plumbing systems.

Product Information

Standard Information

• Brand: Jomar Valve
• Part Number: M1633

Technical Specifications

• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 3.08 inches
• Mfg Standards/Approvals: ANSI B1.20.1 | CF8M Body | MSS SP-110
• Nominal Size: 1-1/4 inches
• Port Type: Reduced
• Pressure Rating: 1000 psi WOG
• Softgoods Material: PTFE
• Top to Inlet Center: 2 inches
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
• Type: 1-Piece
