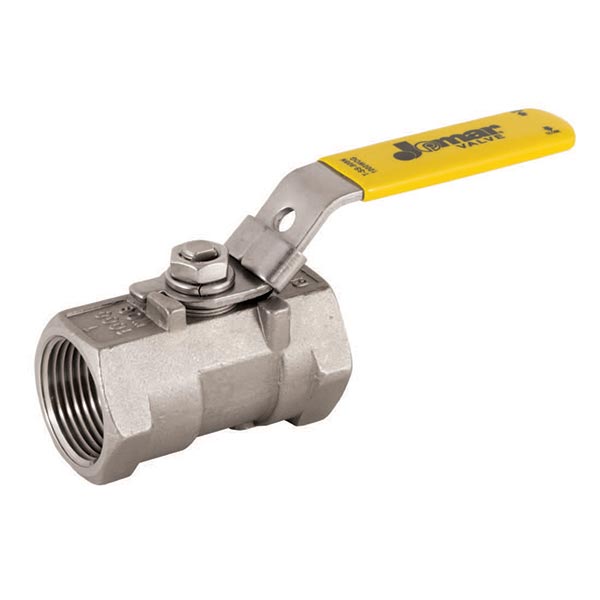

Jomar Valve 100-905 1-Piece Ball Valve With Handle 1 in NPT Stainless Steel Body Reduced Port PTFE Softgoods

Product Description

The Jomar Valve 100-905 is a one-piece ball valve designed for reliable shut-off in various plumbing systems. This valve features a stainless steel body and reduced port design, making it suitable for high-pressure applications. It has an NPT end style for easy installation and a sturdy handle for smooth operation.

• Blow-out proof stem
• 100% leak tested
• Locking device standard

Product Highlights

Ideal for use in residential and commercial plumbing, this valve provides a secure sealing solution. Its construction ensures durability and compliance with safety standards.

Product Information

Standard Information

• Brand: Jomar Valve
• Part Number: M1632

Technical Specifications

• Type: 1-Piece
• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 2.71 inches
• Mfg Standards/Approvals: ANSI B1.20.1 | CF8M Body | MSS SP-110
• Nominal Size: 1 inch
• Port Type: Reduced
• Pressure Rating: 1000 psi WOG
• Softgoods Material: PTFE
• Top to Inlet Center: 1.83 inches
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
