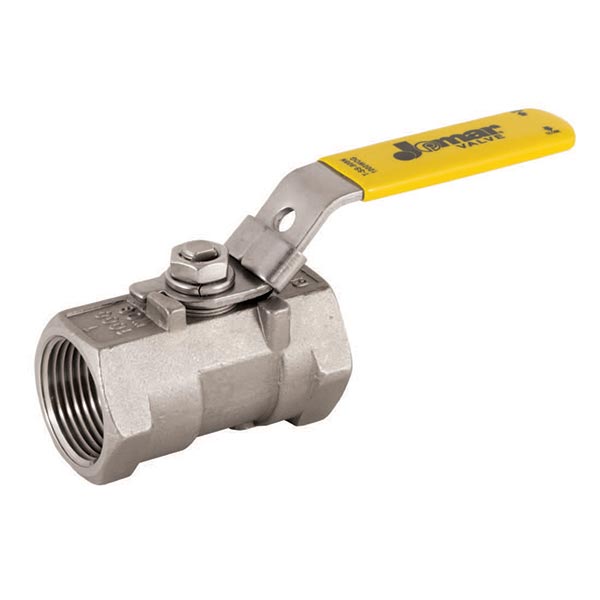

Jomar Valve 100-904 1-Piece Ball Valve With Handle, 3/4 in, NPT, Stainless Steel Body, Reduced Port

Product Description

The Jomar Valve 100-904 is a one-piece ball valve designed for plumbing applications. It features a three-quarter inch NPT connection and is constructed with a stainless steel body. This valve is suitable for various commercial and residential plumbing tasks.

• Durable stainless steel construction
• Leak tested for reliability
• Reduced port design for optimal flow control

Product Highlights

This valve is ideal for applications requiring a secure shut-off. It includes a blow-out proof stem and locking mechanism, ensuring safety and reliability.

Product Information

Standard Information

• Brand: Jomar Valve
• Part Number: M1631

Technical Specifications

• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 2.45 inches
• Mfg Standards/Approvals: ANSI B1.20.1|CF8M Body|MSS SP-110
• Nominal Size: 3/4 inches
• Port Type: Reduced
• Pressure Rating: 1000 psi WOG
• Softgoods Material: PTFE
• Top to Inlet Center: 1.58 inches
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
• Type: 1-Piece
