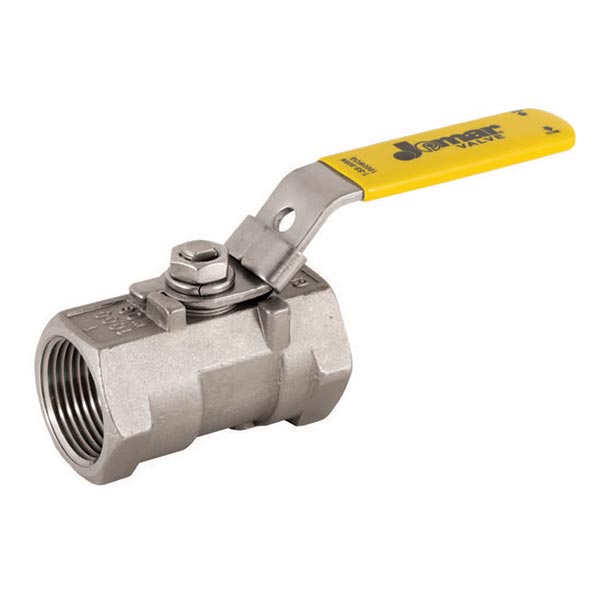

Jomar Valve 100-903 1-Piece Ball Valve With Handle, 1/2 in, NPT, Stainless Steel Body, Reduced Port, PTFE Softgoods

Product Description

The Jomar Valve 100-903 is a 1-piece ball valve with a handle designed for various plumbing applications. Its stainless steel body ensures durability while providing reliable shut-off capabilities. This valve meets stringent standards, making it suitable for both residential and commercial use.

• Blow-out proof stem
• Cast stainless steel body
• Locking device standard

Product Highlights

This valve is easy to install and maintain, making it ideal for plumbers and technicians. The PTFE softgoods provide excellent sealing properties, ensuring a leak-free connection.

Product Information

Standard Information

• Brand: Jomar Valve
• Part Number: M1630

Technical Specifications

• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 2.19 in
• Mfg Standards/Approvals: ANSI B1.20.1 | CF8M Body | MSS SP-110
• Nominal Size: 1/2 in
• Port Type: Reduced
• Pressure Rating: 1000 psi WOG
• Softgoods Material: PTFE
• Top to Inlet Center: 1.45 in
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
• Type: 1-Piece
