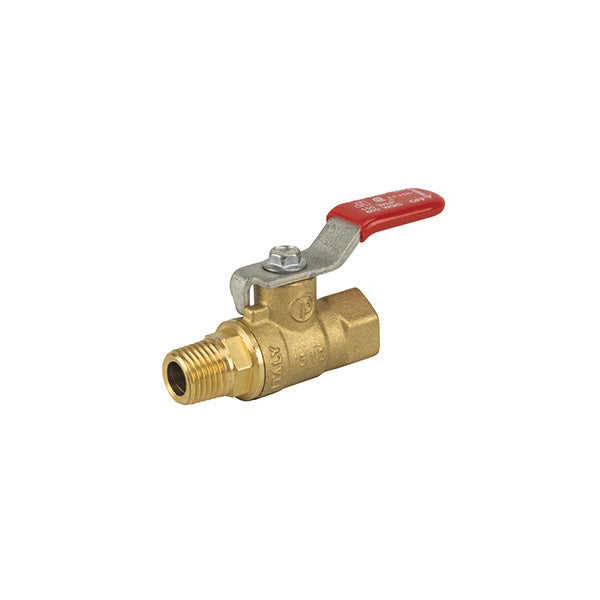

Jomar Valve 100-299 2-Piece Mini Ball Valve 1/4 in FNPT x MNPT

Product Description

The Jomar Valve 100-299 is a 2-piece mini ball valve designed for use in plumbing applications. It features a nominal size of one-fourth inch with FNPT x MNPT end styles. Constructed from brass, this valve provides reliable performance and a full port design for enhanced flow capacity.

• Durable brass construction
• Designed for high flow applications
• Leak-proof stem with lifetime warranty

Product Highlights

This valve allows efficient operation and effective sealing, suitable for various plumbing needs and compliant with industry standards.

Product Information

Standard Information

• Brand: Jomar Valve
• Part Number: J6086

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: FNPT x MNPT
• Inlet to Outlet Length: 2.01 in
• Mfg Standards/Approvals: ANSI B1.20.1, CSA Certified, MSS SP-110, ANSI Z21.15, UNS CW617N Body/Ball, UNS CW614N Stem
• Nominal Size: 1/4 in
• Orifice Size: 0.31 in
• Package Weight: 39.0 lb
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: FKM
• Top to Inlet Center: 1.14 in
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
