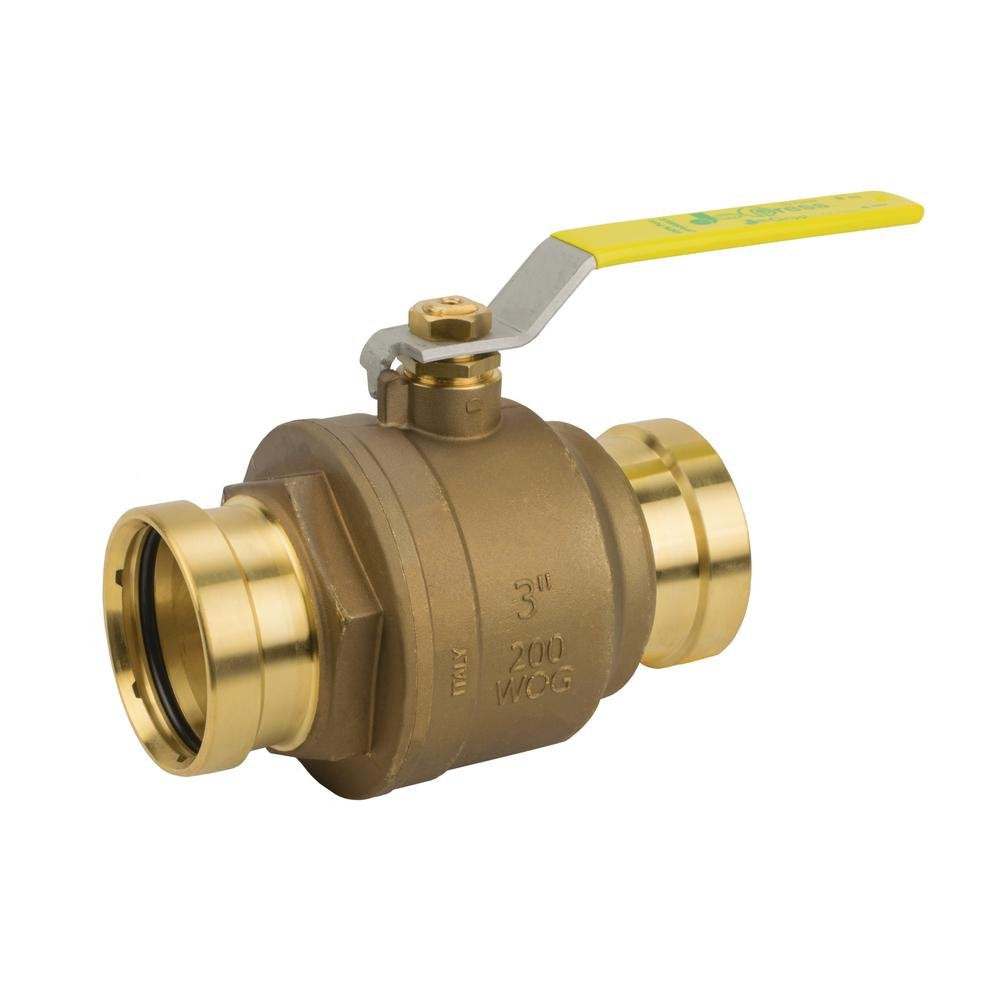

Jomar Valve 100-210XLCG JP-100XLC LF Brass Italian XLC Press Valve, 3 inches

Product Description

The JOMAR VALVE 100-210XLCG JP-100XLC LF Brass Italian XLC Press Valve is a 3-inch valve suitable for gas, oil, and water media. It features a full port design, lead-free brass construction, and a lever-operated actuator. The valve is pressure-rated to 200 psi and temperature-rated to 250 deg F.

• LF Brass Italian XLC Press Valve,3 In.
• Dezincification Resistant Brass Alloy
• Triple Sealing Stem with 2 FKM O-Rings and Second Generation PTFE Seats

Product Highlights

This Jomar Valve is 100% leak tested and made in Italy, featuring a blow-out proof stem and a leakproof stem.

Product Information

Standard Information

• Brand: JOMAR VALVE
• Manufacturer Part Number: 100-210XLCG
• Country of Origin: Italy

Technical Specifications

• Brand: Jomar Valve
• MPN: 100-210XLCG
• Product Type: VALVE
• Product Group: BISS
• Number of Items: 1.0
• Material: Lead Free Brass
• Type: Ball Valve
• Port: Full Port
• Connection: Press XLC Connection
• WOG: 200 psi
• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• End Style: Press
• Inlet to Outlet Length: 8.49 in
• Media: Gas/Oil/Water
• Nominal Size: 3 In
• Orifice Size: 2.99 in
• Pressure Rating: 200 psi
• Series: JP-100PxP XLC
• Softgoods Material: EPDM
• Temperature Rating: 250 deg F
• Top to Inlet Center: 5.31 in
• Trim Material: Brass Stem and TFM Seat
• Maximum Pressure Rating: 200 psi WOG
• Number of Ports/Ways: 2
• Opening Size: 2.99 in
• Seat: Hostaflon® TFM 1600
• Seal: Teflon
• Stem: Brass
• Construction: 2-Piece
• Handle Type: Lever
• Handle Material: Steel
• Standards/Approvals: IAPMO PS 117, Prop65 Warning: Cancer and Reproductive Harm @www.P65Warnings.ca.gov
• Family: JP-100G XLC
• Size: 3”
• Packing: Hostaflon® TFM 1600
