Jomar TG-IGG TG – Grooved Manual Balancing Valve 4 inches

Product Description

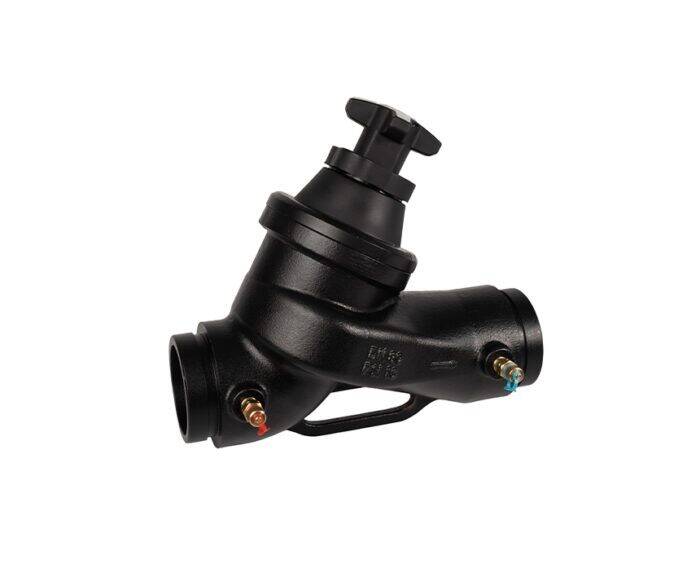

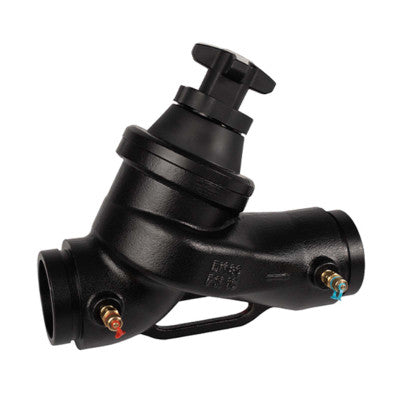

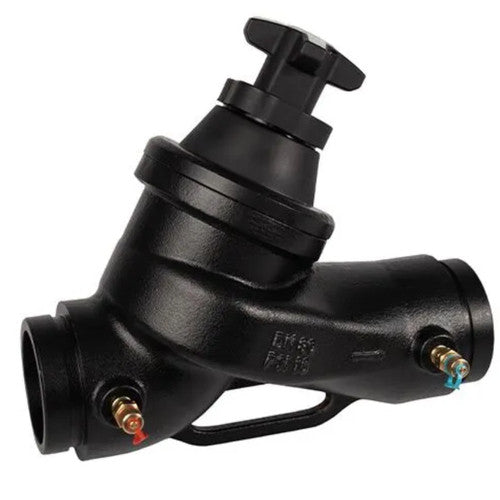

The JOMAR TG-IGG Terminator G is a manual balancing valve with a multi-turn globe valve and Y-pattern design. It features variable orifice functionality and a grooved connection. Designed for precise flow control and measurement, this valve includes a memory stop for reliable and accurate flow regulation.

• +/- 5% Accuracy
• Positive Shut-Off
• Two Pressure Test Ports

Product Highlights

High-precision manual balancing valve for optimal flow control and measurement. Features a multi-turn globe valve, Y-pattern design, and grooved connection.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: TG-IGG

Technical Specifications

• Size: 4 in.
• Type: Manual Balancing Valve
• Design: Multi-Turn Globe Valve, Y-Pattern
• Stop: Memory Stop
• Pressure: 230 WOG
• Body: Ductile Iron
• End Connections: ANSI 300 Grooved
• Stem: Stainless Steel (AISI 420)
• Seat Seal: EPDM Perox
• Accuracy: +/- 5%
• Shut-Off: Positive Shut-Off
• Test Ports: Two Pressure Test Ports
• Handwheel: Multi-Turn, 360°F Handwheel with Vernier Scale and Digital Readouts
• Measurement: Precise Flow Measurement and Flow Balancing
• Pressure/Temperature Rating: 235 PSI
• Temperature Range: 14°F TO 248°F
