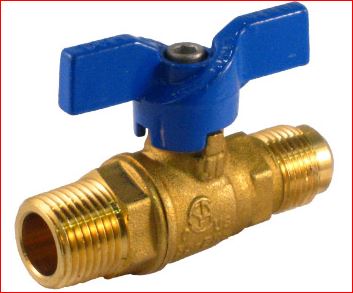

Jomar T204 Mxfl 1/2 Ball Valve 1/2 in Flare X Mnpt Brass

Product Description

The JOMAR T204 MXFL 1/2 is a 2-piece brass ball valve engineered for natural gas and related gas service applications. It features a 1/2 inch Flare x Male NPT (MNPT) end connection, a chrome-plated brass ball, and a brass stem with PTFE seat trim. FKM softgoods provide reliable sealing compatibility with gas media. Rated at 600 psi WOG with a 0.47 inch orifice, this valve delivers full shutoff performance in a compact body measuring 3 inches inlet to outlet and 1.63 inches top to inlet center. Licensed plumbing and gas fitters install this valve on residential and light commercial gas piping systems.

This valve is suited for gas distribution piping where a flare-to-male-threaded transition shutoff is required. The flare inlet connection follows ASME B16.44 standards and the male NPT outlet conforms to ANSI B1.20.1, making this valve appropriate for appliance gas lines, meter sets, and branch shutoff applications. The lever handle allows for quick quarter-turn open and close operation, which is standard practice on gas service valves in both new construction and replacement service work.

Key Features

• 2-piece brass body construction using UNS CW617N body alloy and UNS CW614N ball and stem alloy
• 600 psi WOG pressure rating for gas service duty
• 0.47 inch orifice with chrome-plated brass ball and PTFE seat trim
• FKM softgoods rated for gas media compatibility
• 1/2 inch Flare x MNPT end connections per ASME B16.44 and ANSI B1.20.1
• Multi-certification compliance including cULus Listed, CSA Certified, UL Listed, and ANSI Z21.15

Compatibility

Designed as an OEM-style replacement or new-installation shutoff valve for 1/2 inch gas piping systems where a Flare x MNPT connection is required. Certifications include NFPA 54/ANSI Z223.1 and MSS SP-110, confirming suitability for natural gas service per applicable fuel gas codes.

Installation Notes

Installation should be performed by a licensed plumber or gas fitter in accordance with NFPA 54/ANSI Z223.1 and applicable local fuel gas codes. Shut off the gas supply and verify zero pressure at the work point before beginning any connection work. Flare fittings require proper flaring tools to achieve a leak-free seat; do not use pipe dope or tape on flare connections. After installation, perform a leak test using an approved gas leak detection solution before returning the system to service.

Technical Specifications

• Valve Type: 2-Piece Ball Valve
• Nominal Size: 1/2 inch
• End Connection: Flare x MNPT
• Pressure Rating: 600 psi WOG
• Orifice Diameter: 0.47 inches
• Inlet to Outlet Length: 3 inches
• Top to Inlet Center: 1.63 inches
• Body Material: Brass (UNS CW617N)
• Ball and Stem Material: Brass (UNS CW614N), Chrome Plated
• Seat Trim: PTFE
• Softgoods: FKM
• Media: Gas
• Certifications: cULus Listed, UL Listed, CSA Certified, ANSI Z21.15, ANSI B1.20.1, ASME B16.44, NFPA 54/ANSI Z223.1, MSS SP-110, CGA CR91

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: T204 MXFL 1/2
