Jomar T204 3/4 Gas Ball Valve Teardrop Handle 2 Piece 600 WOG 3/4 Inch FIP

Product Description

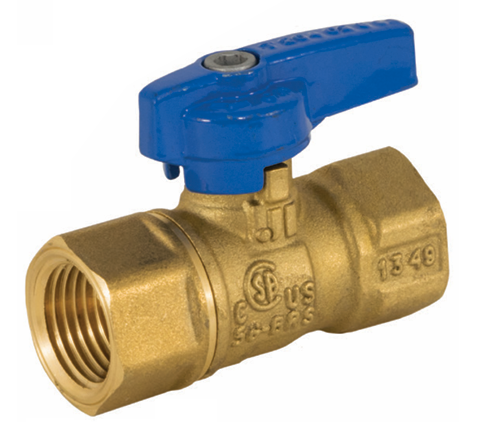

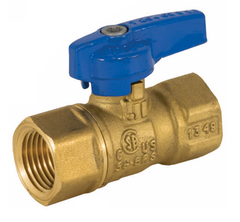

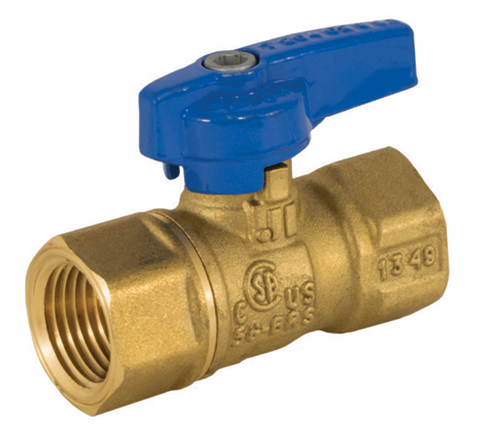

The JOMAR T204 3/4 Gas Ball Valve is a 2-piece, 3/4" FIP valve designed for gas applications, featuring a teardrop handle and a maximum pressure rating of 600 psi WOG. Constructed from Brass C37700 for the body and chrome-plated brass for the ball, it ensures durability and reliable performance. This valve is equipped with a leakproof stem and PTFE seats, making it suitable for various gas shut-off uses. It is 100% made in Italy and 100% leak tested.

• Leakproof stem for enhanced safety and longevity.
• Valve can be locked in the closed position by reversing the handle.
• UL Listed and CSA Certified, meeting ANSI Z21.15 and ASME B16.44 standards.

Product Highlights

Durable brass construction, leakproof stem, 600 psi WOG pressure rating, and certified for gas shut-off applications.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: T204 3/4
• Country of Origin: Italy

Technical Specifications

• Size: 3/4" FIP
• Design Type: 2-Piece
• End Connection: FIP
• Body Material: Brass C37700
• Ball Material: Chrome Plated Brass
• Handle Type: Teardrop Handle
• Seat Material: PTFE
• Stem Material: Brass
• Stem Design: Leakproof Stem
• Max Pressure: 600 psi WOG
• Manufacturing Origin: Italy
• Certifications: ['UL Listed', 'CSA Certified']
• Standards: ['ANSI Z21.15 (.5 PSIG)', 'ASME B16.44 (5 PSIG)', 'CSA 9.4:21 (5 PSIG)', 'ANSI B1.20.1', 'MSS SP-110']
