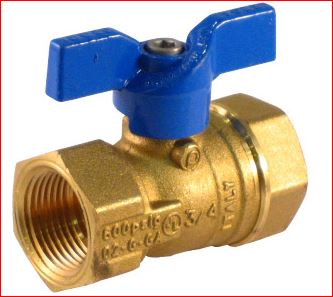

Jomar T204 1/2 Gas Ball Valve 1/2 Inch Fnpt Brass

Product Description

The JOMAR T204 1/2 is a 2-piece gas ball valve designed for natural gas and propane distribution lines in residential and light commercial applications. Built with a brass body and chrome-plated brass ball, it delivers a 600 psi WOG pressure rating and seals with PTFE seat trim and PTFE/FKM softgoods for reliable shutoff. The valve uses female NPT connections on both ends and is actuated by a T-handle for positive open/close indication. Licensed plumbers and gas fitters install this valve as a service shutoff or appliance isolation valve in threaded IPS piping systems.

This valve fits threaded IPS piping in both new construction and retrofit gas service work. Its FNPT inlet and outlet accept standard tapered pipe threads per ANSI B1.20.1, making it compatible with iron, brass, and corrugated stainless steel tubing fittings commonly found in residential furnace, water heater, and dryer gas supply lines. The compact 2-piece body keeps overall face-to-face length minimal in tight rough-in conditions.

Key Features

• 600 psi WOG pressure rating for gas service applications
• Chrome-plated brass ball with PTFE seat for low-torque, bubble-tight shutoff
• PTFE/FKM softgoods resist hydrocarbon gas and minor moisture exposure
• Female NPT x Female NPT connections per ANSI B1.20.1
• T-handle actuator provides clear visual open/close position indication
• Lifetime limited warranty coverage

Compatibility

Designed as an OEM-style replacement or new-installation shutoff valve for threaded IPS gas piping systems in residential and light commercial settings.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off upstream gas supply and verify zero pressure before removing or installing any valve. Apply thread sealant rated for gas service to male threads only, keeping sealant clear of the first thread to prevent contamination of the valve seat. Pressure-test all connections after installation before restoring gas service.

Technical Specifications

• Valve Type: 2-Piece Ball Valve
• Nominal Size: 1/2 inch
• End Style: FNPT x FNPT (Female NPT both ends)
• Pressure Rating: 600 psi WOG
• Inlet to Outlet Length: 2.4 inches
• Top to Inlet Center: 1.63 inches
• Body Material: Brass (CW617N)
• Ball Material: Chrome Plated Brass
• Stem Material: Brass
• Seat and Softgoods: PTFE seat, PTFE/FKM packing
• Actuator: T-Handle
• Standards and Approvals: ANSI B1.20.1, CSA Certified, CRN 0C16887.5469870YTN, MSS SP-110
• Warranty: Lifetime Limited
• Origin: Import

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: T204 1/2
