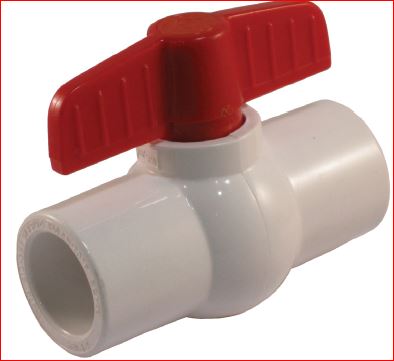

Jomar S701 3/4 pvc sch 80 ball valve cxc 3/4 210-224

Product Description

The Jomar S701 3/4 Ball Valve is a PVC SCH 80 solvent connection valve, part number 210-224. It is designed for applications requiring a 3/4 inch nominal size and can withstand a pressure rating of 150 psi WOG at 73 deg F. This valve features a large port UPVC ball and EPDM/UPVC stem trim, ensuring efficient flow and corrosion resistance.

• Each valve tested in open and closed position
• Minimal pressure drop/turbulence
• Large ports for greater flow

Product Highlights

Corrosion-resistant UPVC ball valve with large ports for efficient flow.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: S701 3/4

Technical Specifications

• Body Material: UPVC
• Certifications: ASTM F1970, NSF/ANSI 14, NSF 61 - Annex G/61-8/372
• Temperature Rating: 73 deg F
• Nominal Size: 3/4 in
• Connection Type: Solvent
• Pressure Rating: 150 psi WOG
• Port Type: Large Port
• Ball Material: UPVC
• Inlet to Outlet Length: 3.74 in
• Stem Trim Material: EPDM/UPVC
• Softgoods Material: EPDM
