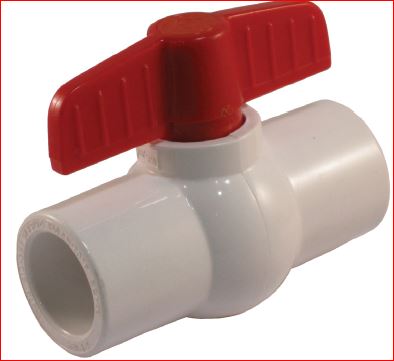

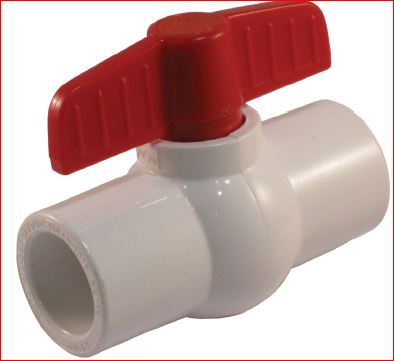

Jomar S701 2 Ball Valve 2 Inch Solvent Upvc Large Port

Product Description

The JOMAR S701 2 is a 2-inch large-port ball valve designed for solvent-weld (CxC) connections in plastic piping systems. The body and ball are constructed from UPVC, making this valve well-suited for chemical-handling, irrigation, and industrial water applications where corrosion resistance is a priority. Stem trim is EPDM and UPVC, and softgoods are EPDM throughout. The valve carries a 150 psi WOG rating at 73 degrees F and measures 5.79 inches from inlet to outlet. It ships with a handle and is ready for direct installation by licensed plumbers or irrigation technicians working with Schedule 80 PVC systems.

This valve is intended for solvent-weld plastic piping assemblies, particularly Schedule 80 PVC applications in residential, commercial, or light industrial settings. Typical installations include chemical feed lines, recirculating water systems, pool and spa plumbing, and irrigation manifolds where a full-bore, low-restriction shutoff is required. The large-port design minimizes pressure drop across the valve body, which is advantageous in flow-critical circuits.

Key Features

• UPVC body and ball for corrosion resistance in chemical and water service
• Large-port configuration for reduced pressure drop and improved flow capacity
• EPDM softgoods for compatibility with a broad range of water-based media
• 150 psi WOG pressure rating at 73 degrees F
• Solvent-weld (CxC) end connections sized for 2-inch Schedule 80 PVC pipe
• Certified to NSF/ANSI 14, NSF 61 Annex G, NSF 61-8, NSF 372, and ASTM F1970

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 2-inch solvent-weld UPVC and Schedule 80 PVC piping systems. Conforms to ASTM F1970 dimensional standards.

Installation Notes

Installation should be performed by a licensed plumber or qualified irrigation technician familiar with plastic piping systems and applicable IPC or local plumbing codes. Shut off system pressure and drain the line before cutting in or replacing the valve. Use only compatible UPVC solvent cement and primer per the pipe and fitting manufacturer instructions — do not apply excessive cement, which can degrade internal softgoods. Allow full solvent-cure time before pressurizing the system.

Technical Specifications

• Connection Type: Solvent (CxC)
• Nominal Size: 2 inches
• Port Size: Large Port
Inlet to Outlet Length: 5.79 inches
• Pressure Rating: 150 psi WOG
• Temperature Rating: 73 degrees F
• Body Material: UPVC
• Ball Material: UPVC
• Stem Trim: EPDM and UPVC
• Softgoods: EPDM
• Standards and Approvals: ASTM F1970, NSF/ANSI 14, NSF 61 Annex G, NSF 61-8, NSF 372

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: S701 2
