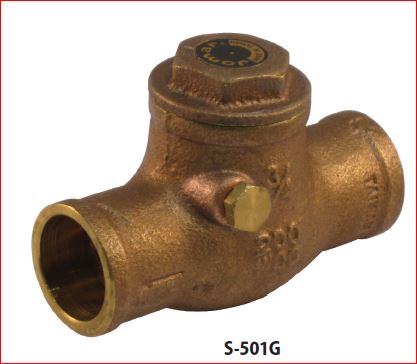

Jomar S501G 3/4 Horizontal Swing Check Valve 125 lb 3/4 in Nominal

Product Description

The JOMAR S501G 3/4 Horizontal Swing Check Valve is designed for commercial and residential applications. This S-501G series valve features a cast brass body and forged brass trim, ensuring durability. It is a 3/4 inch nominal solder end valve with a 125 lb pressure rating. The valve is low lead compliant, with wetted surfaces containing less than 0.25% lead content, making it suitable for potable water systems. It operates at 200 WOG.

• Wetted surface contains less than 0.25% lead content
• 200 WOG pressure rating for water, oil, and gas applications
• Constructed with a cast brass body and forged brass trim

Product Highlights

Low lead compliant horizontal swing check valve for commercial and residential use.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: S501G 3/4

Technical Specifications

• Type: Horizontal
• Series: S-501G
• Body Material: Cast Brass
• Certifications: ASME/ANSI B16.18, IAPMO Certified, NSF 372, UPC Listed
• Application: Commercial and Residential
• Brand: Jomar
• Category: Swing Check Valves
• Manufacturer Part Number: 105-204G
• UNSPSC: 40141634
• Nominal Size: 3/4 inch
• End Style: Solder
• Pressure Rating: 200 WOG
• Low Lead Compliance: Yes
• Inlet to Outlet Length: 3.11 in
• Top to Inlet Center: 1.62 in
• Trim Material: Forged Brass
