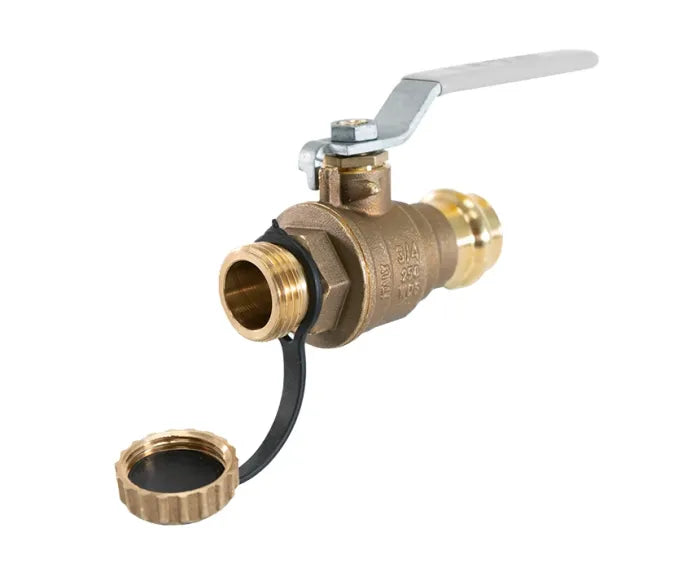

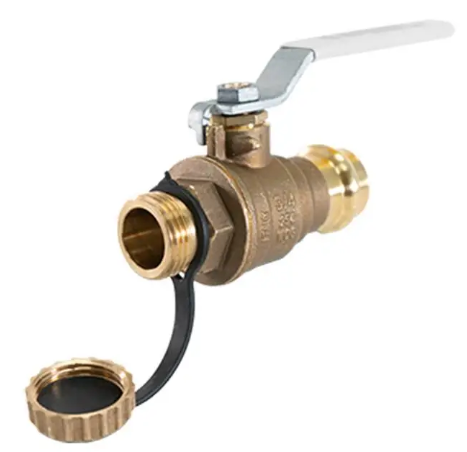

Jomar JP-100HCG Ball Valve 3/4 inches Press x Hose Connection REPLACEMENT MPN

Product Description

The JOMAR JP-100HCG is a lead-free brass ball valve with a 2-piece, full port design and a press x hose connection with hose cap. It is designed with dezincification resistant brass alloy and a triple sealing stem with 2 FKM O-Rings and second generation PTFE seats.

• Dezincification Resistant Brass Alloy
• Triple Sealing Stem with 2 FKM O-Rings and Second Generation PTFE Seats
• Hose Connection with Strapped Cap

Product Highlights

This ball valve features a blow-out proof stem, is 100% leak tested, and made in Italy. Wetted surfaces contain less than .25% lead content.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: JP-100HCG
• Country of Origin: Italy

Technical Specifications

• Item: Ball Valve
• Size: 3/4"
• Port: Full Port
• Design Type: 2-Piece
• End Connection: Press x 3/4" Hose Connection
• Body Material: Lead-Free Brass - C27453
• Ball Material: TEA Coated Lead-Free Brass
• Handle Type: Lever
• Seat Material: PTFE
• Stem Material: Lead-Free Brass
• Stem Design: Blowout Proof
• Max Pressure: 250 psi WOG
• Max Temp: 250 0F
